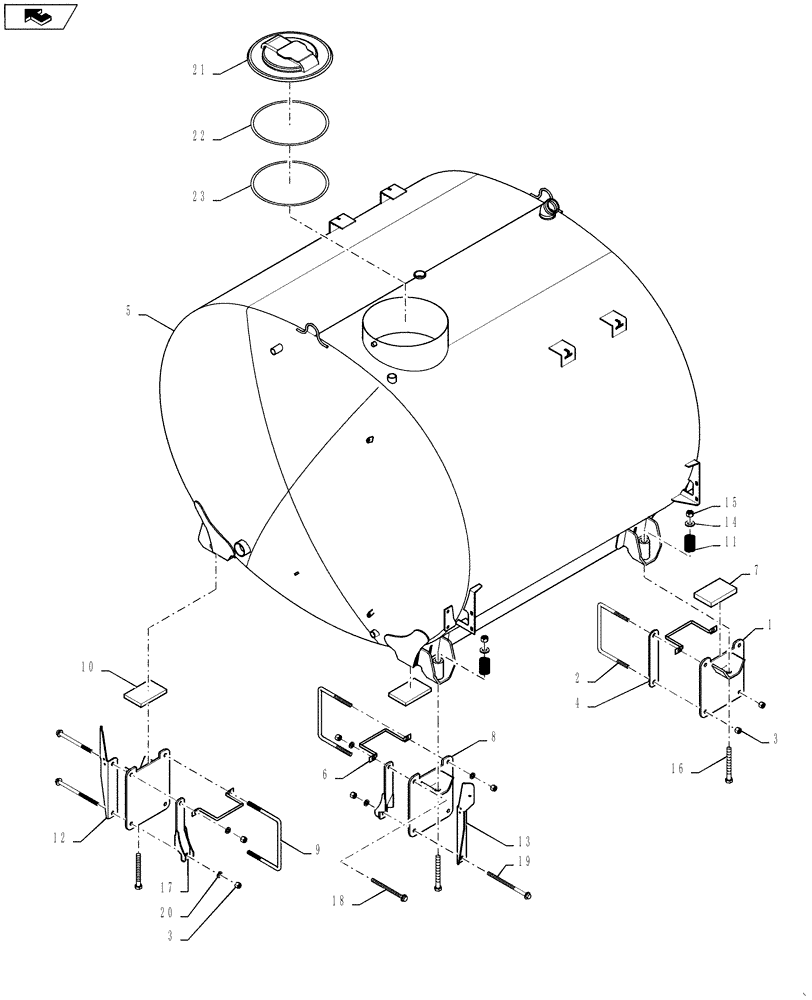

Запчасти Case IH 4430 (65.901.01[01]) - PRODUCT TANK MOUNTING, BSN YCT033001 (65) - TANKS (NOT FUEL TANKS)

1

87269351

SUPPORT

Rear Product Tank Mount

2шт.

2

BN325918

U-BOLT

M16 X 256 ID X 187 IL

4шт.

3

412066

NUT,M16 x 2.0, Cl 8

16шт.

4

BN325921

SPACER

Frame

4шт.

5

87268187

TANK

1200 Gal, Main Product

1шт.

6

343010A1

STRAP

Tank Pad

4шт.

7

343009A1

PAD

Tank Mount, Rear

2шт.

8

87269352

BRACKET

Front Product Tank Mount

2шт.

9

343008A1

U-BOLT

M16-2 x 269 ID x 200 IL

2шт.

10

343014A1

BASE

Tank Mount, Front

2шт.

11

BN312850

SPRING

1" ID X 4" Long

4шт.

12

BN325933

SUPPORT

Drive Hoses, RH

1шт.

13

BN325932

SUPPORT

Drive Hoses, LH

1шт.

14

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

4шт.

15

87024336

NUT,M20 x 2.5, Cl 10

4шт.

16

87310605

BOLT,M20 x 180, 10.9, DOR

4шт.

17

84419280

RETAINER

Tank Mount

2шт.

18

87028053

BOLT,Hex Flg, M16 x 210, 10.9

Flange, M16 x 210, CL 10.9, ZND

2шт.

19

86511851

FLANGE BOLT,Hex, M16 x 260mm, Cl 8.8

Flange, M16 x 260, CL 8.8, ZND

2шт.

20

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

6шт.

21

87270464

CAP

Tank, 16" Manhole, With 10" Fill

1шт.

22

BN2391314-002

GASKET

10" Fill

1шт.

23

BN2391314-001

GASKET

16" Manhole

1шт.
