Запчасти Case IH 4430 (55.911.04) - AUTOGUIDANCE, CAB GROUP (55) - ELECTRICAL SYSTEMS

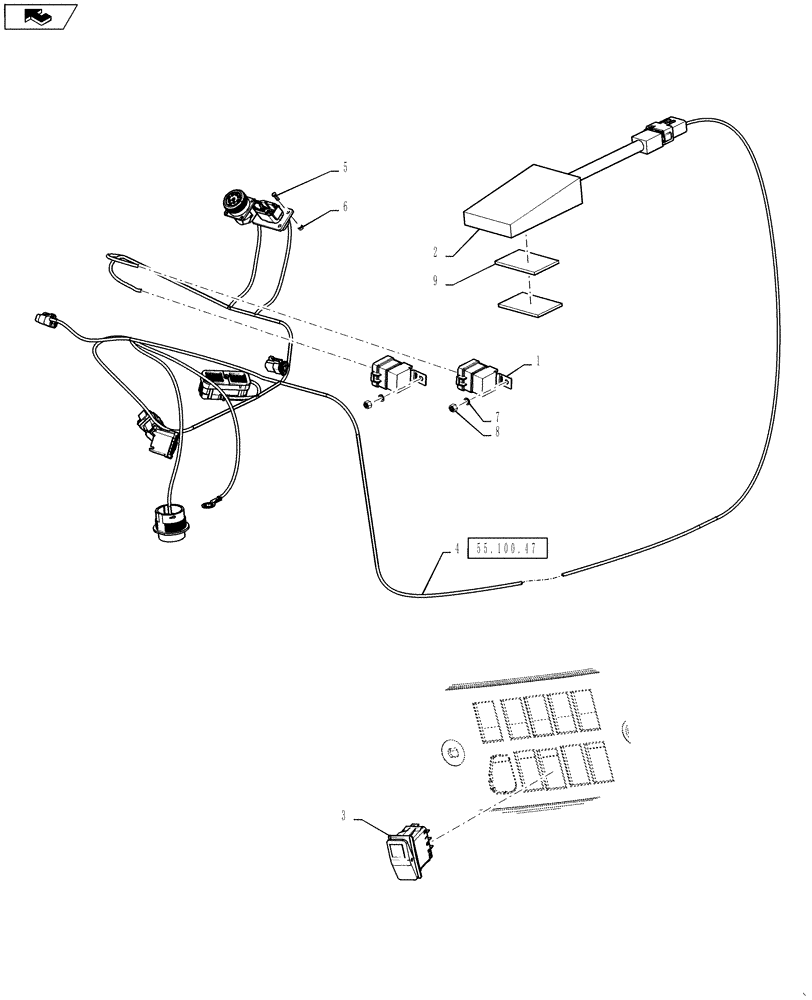

Схема запчастей Case IH 4430 - (55.911.04) - AUTOGUIDANCE, CAB GROUP (55) - ELECTRICAL SYSTEMS
9
6
4
7
8
1
5
home
2
55.100.47
3

Артикул

Название

Примечание

Количество

1

293256A2

RELAY,12V

Autoguidence, 12V, 40A, Weatherproof

2шт.

2

87646096

SWITCH ASSY

Foot Pedal Engage

1шт.

3

87711789

AUTO GUIDANCE DISENG

Cab Roof

1шт.

4

84161533

WIRE HARNESS

Autoguidence Cab, BSN YCT032413

1шт.

See Fig 55.100.47(01) For Service Parts Breakdown

1шт.

4

84469082

WIRE HARNESS

Autoguidence Cab, SN YCT032413 And After

1шт.

See Fig 55.100.47(02) For Service Parts

1шт.

5

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

4шт.

6

824-1403

NUT,M3, Cl 5

4шт.

7

13550001

WASHER,4.15mm ID x 10mm OD x 0.8mm Thk

4.15 x 10 x 0.8, ZND

2шт.

8

87016570

NUT

M4, CL 5, ZND

2шт.

9

87646099

FASTENER

Dual Lock

2шт.

Выбрано товаров: 12
