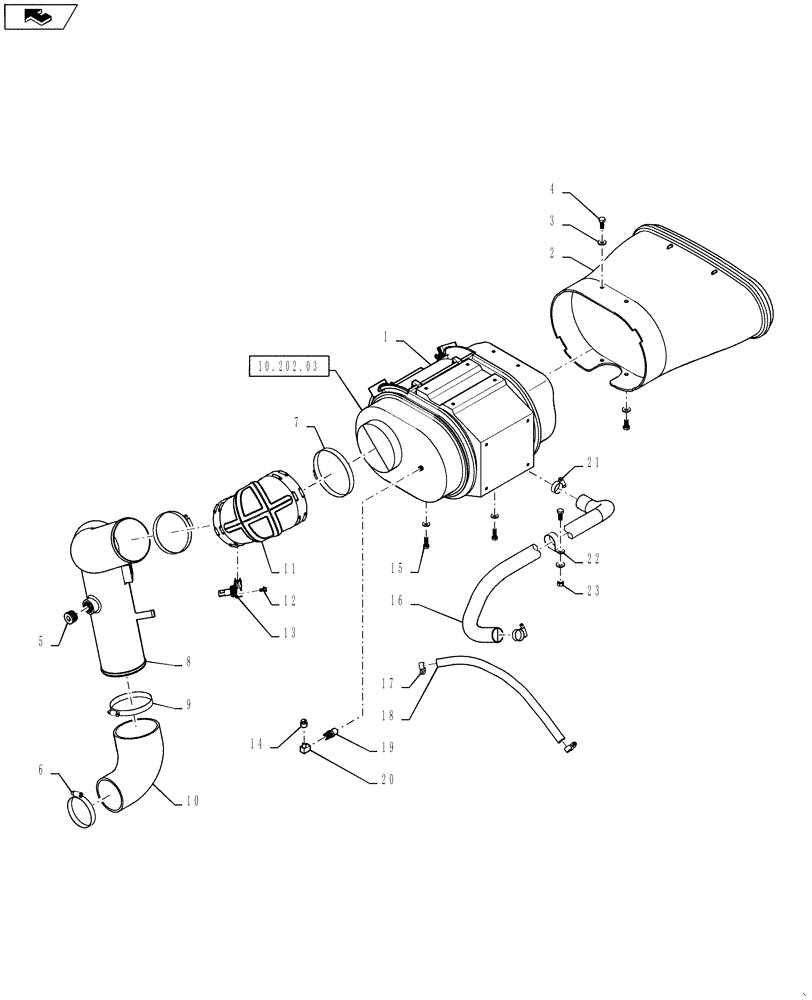

Запчасти Case IH 4430 (10.202.02) - AIR INTAKE (10) - ENGINE

1

84293917

AIR FILTER

See 10.202.03 For Breakdown

1шт.

2

84405050

AIR INTAKE TUBE

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

17шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

13шт.

5

86625135

PLUG,1" - 11-1/2 NPT

ZN

1шт.

6

87485012

CLAMP,3.75" - 4.62", Worm Gear

4.5 Inch Hose

1шт.

7

87485016

CLAMP,5.75" - 6.62", Worm Gear

6.5 Inch Hose

1шт.

8

84291393

AIR INTAKE TUBE

1шт.

9

87485010

CLAMP,4.75" - 5.62", Worm Gear

5.5 Inch Hose

2шт.

10

BN306335

ELBOW

90°, 5 x 4

1шт.

11

87418236

ELBOW

6 X 5, 90 Degree

1шт.

12

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

Flange, M6 X 12 Full, 10.9 ZND

2шт.

13

87482355

SENSOR

Humidity And Temperature

1шт.

14

279492A1

RESTRICTION SWITCH

1шт.

15

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

16

84281739

HOSE

Aspirator

1шт.

17

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

18

84282007

HOSE

CCV

1шт.

19

D36264

FITTING

Air Cleaner Adapter

1шт.

20

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

21

87485014

CLAMP,1.25" - 2.12", Worm Gear

2 Inch Hose

2шт.

22

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

ZN

1шт.

23

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.
