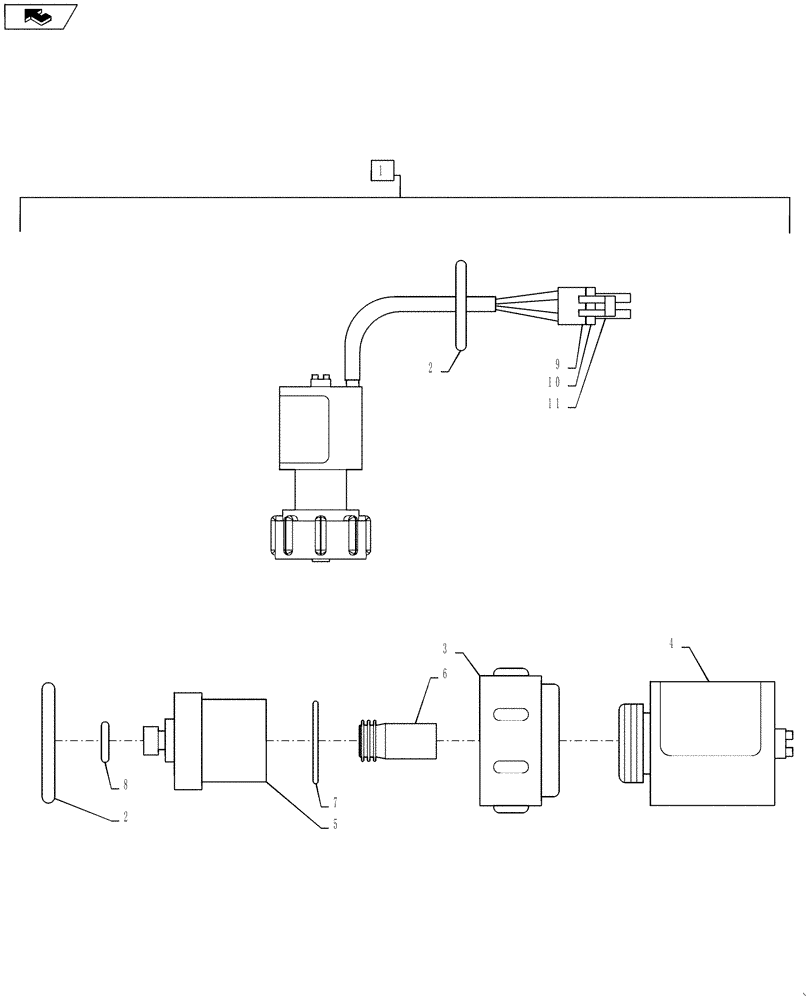

Запчасти Case IH 4430 (55.635.19) - TEE-JET AIM COMMAND SOLENOID (55) - ELECTRICAL SYSTEMS

1

84406758

SOLENOID

Aim Command, Tee-Jet Nozzles, Complete, Includes Ref 2 thru 11

1шт.

2

NSS

NOT SOLD SEPARAT

Tee-Jet, -117 Viton

1шт.

3

NSS

NOT SOLD SEPARAT

Flynut, Tee-Jet

1шт.

4

87272502

SOLENOID

Coil Assembly, 7W, Overmolded

1шт.

5

NSS

NOT SOLD SEPARAT

Grip Body, Tee-Jet

1шт.

6

87272503

PLUNGER

Assembly, PFE

1шт.

7

87272504

O-RING

0.015, Viton

1шт.

8

87272505

O-RING

0.008, Viton

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

Weather Pack, Female 2 Pin

1шт.

10

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Socket, 14-16awg

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

Green

2шт.
