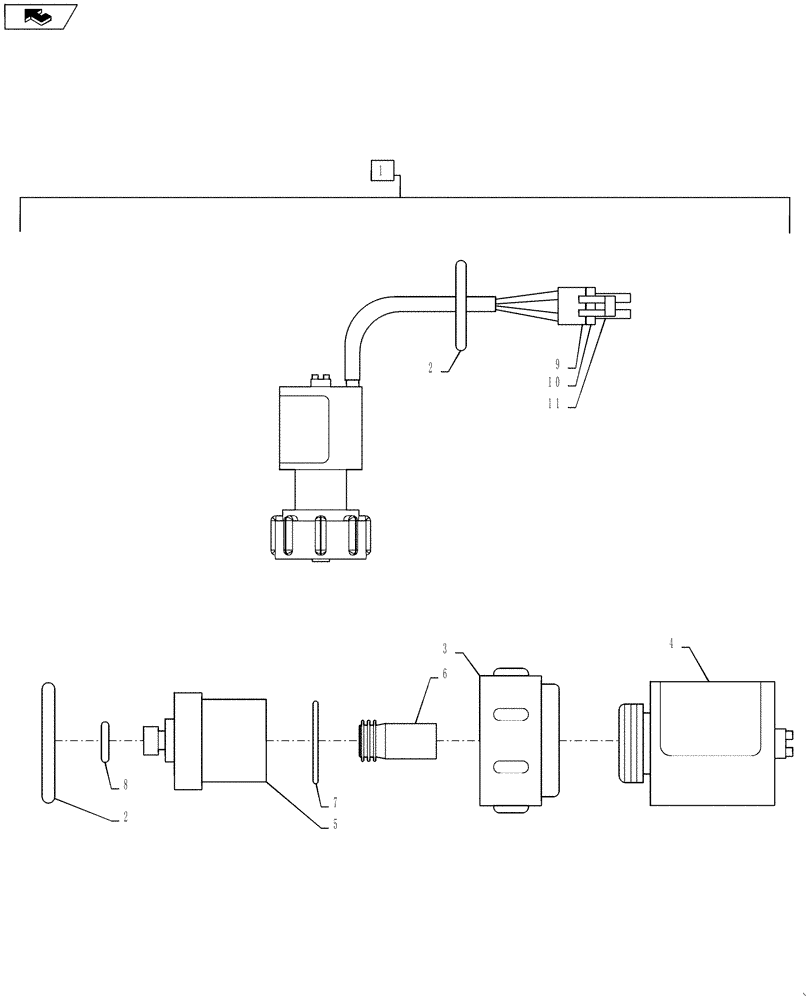

Запчасти Case IH 4430 (55.635.18[01]) - ARAG AIM COMMAND SOLENOID (55) - ELECTRICAL SYSTEMS

1

87271451

SOLENOID

Aim Command, Arag, Complete, Includes Ref 2 thru 11

1шт.

2

87272506

O-RING

Arag, 115 Viton

1шт.

3

84249074

CAP

Flynut, Arag

1шт.

4

87272502

SOLENOID

Coil Assembly, 7W, Overmolded

1шт.

5

87272507

HYDRAULIC VALVE

Grip Body, Arag

1шт.

6

87272503

PLUNGER

Assembly, PFE

1шт.

7

87272504

O-RING

0.015, Viton

1шт.

8

87272505

O-RING

0.008, Viton

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

Weather Pack, Female 2 Pin

1шт.

10

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Socket, 14-16awg

2шт.

11

225124C1

SEAL,2 - 2.9 mm2

Green

2шт.
