(55.635.15) - AIM COMMAND CONTROL NODE MOUNTING, REAR BOOM, 120’ BOOM

Запчасти Case IH 4430 (55.635.15) - AIM COMMAND CONTROL NODE MOUNTING, REAR BOOM, 120’ BOOM (55) - ELECTRICAL SYSTEMS

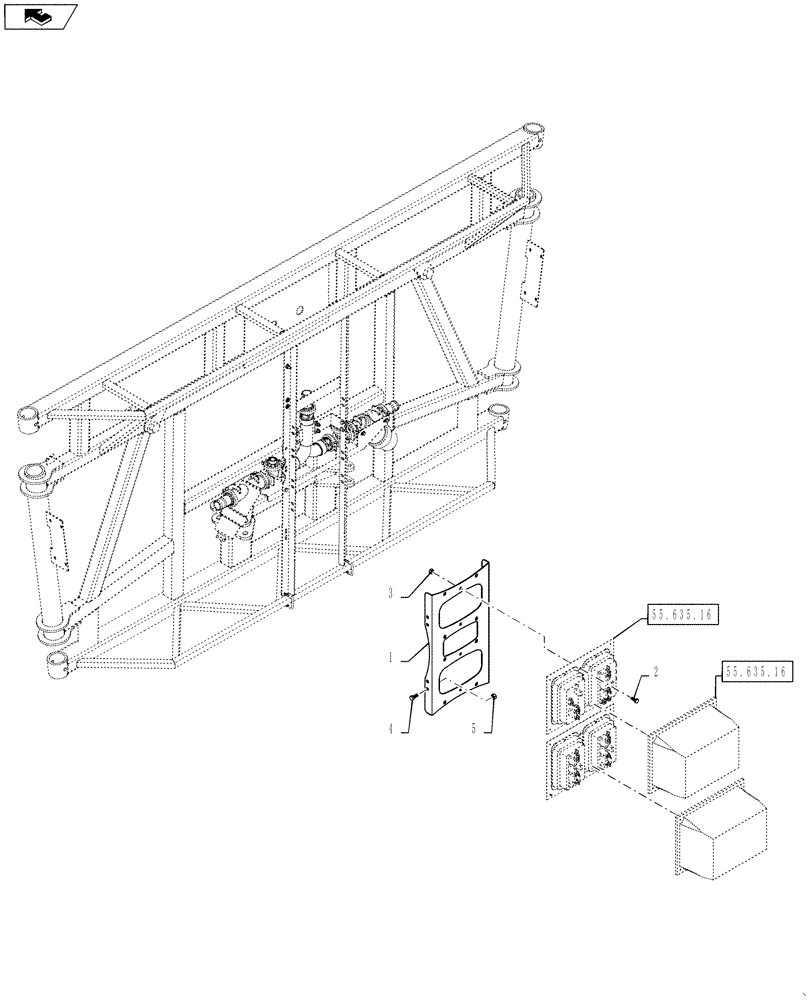

Схема запчастей Case IH 4430 - (55.635.15) - AIM COMMAND CONTROL NODE MOUNTING, REAR BOOM, 120’ BOOM (55) - ELECTRICAL SYSTEMS
1
home
3
5
2
55.635.16
4
55.635.16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87629080

BRACKET, SUPPORTING

Aim Command Node Mount, 120' Boom

1шт.

2

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.
