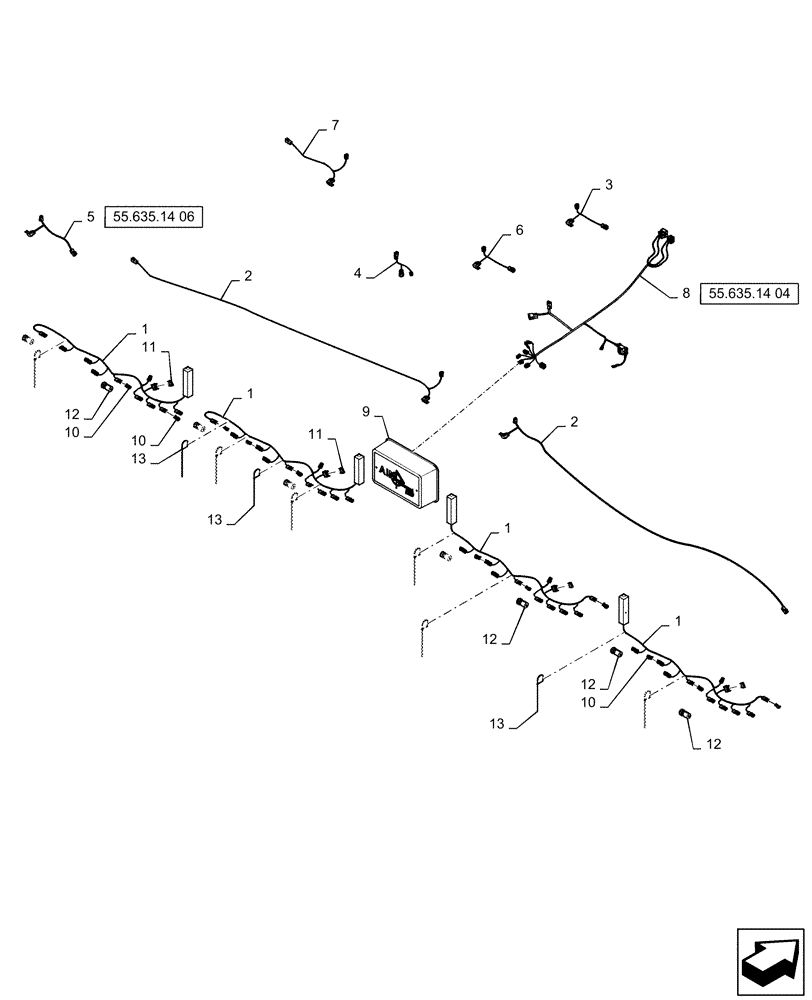

Запчасти Case IH 4430 (55.635.14[05]) - AIM COMMAND PRO WIRING, 120, WILGER (55) - ELECTRICAL SYSTEMS

1

47552079

WIRE HARNESS

Module. VCM, 9 Nozzle x 20, AIM CMD PRO

9шт.

2

47552095

WIRE HARNESS

Extension, Can-Bus, 6 Con x 50 Ft, AIM CMD PRO

2шт.

3

47552093

WIRE HARNESS

Extension, Can-Bus, 6 Con x 40 Ft, AIM CMD PRO

2шт.

4

47584831

WIRE HARNESS

Y-Adapter, Can-Bus, 6 Con

2шт.

5

47552089

WIRE HARNESS

Extension, Can-Bus, 6 Con x 20 Ft, AIM CMD PRO

2шт.

6

47552087

WIRE HARNESS

Extension, Can-Bus, 6 Con x 10 Ft, AIM CMD PRO

2шт.

7

47552091

WIRE HARNESS

Extension, Can-Bus, 6 Con x 30 Ft, AIM CMD PRO

1шт.

8

47552084

WIRE HARNESS

Chassis, AIM CMD PRO

1шт.

9

47591247

COVER

AIM Command Pro, Gateway Hub

1шт.

10

87697537

ELEC CONNECTOR

W.Pack, 2w Herm, HSG

9шт.

11

87692817

ELEC CONNECTOR

W.Pack,4w Herm, HSG

9шт.

12

87271452

SOLENOID

AIM CMD PRP, WILGER, 150p

72шт.

12

87271452R

REMAN-SOLENOID

AIM CMD PRP, WILGER, 150p

72шт.

12

87271452C

CORE-SOLENOID

Return Number

72шт.

13

BN570007

STRAP

Blk Only, 0.12-4.0 BND

298шт.

14

47592591

CIRCUIT BREAKER

Not Shown

1шт.
