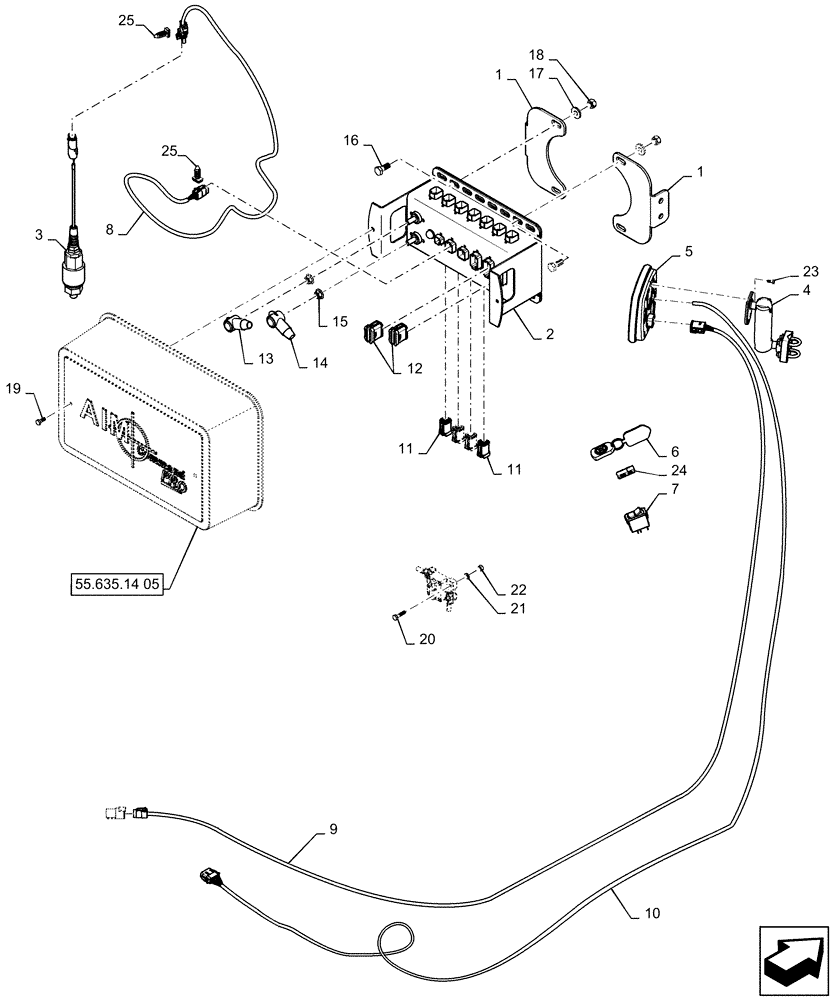

Запчасти Case IH 4430 (55.635.14[04]) - AIM COMMAND PRO, 120, WILGER (55) - ELECTRICAL SYSTEMS

1

47591234

BRACKET

AIM CMD PRO Gateway

2шт.

2

47552080

JUNCTION BLOCK

Hub Assy

1шт.

3

47609409

SENSOR

Pressure, AIM CMD PRO

1шт.

4

47591909

MOUNT

Proview, AIM CMD PRO

1шт.

5

47586224

CONTROLLER

Proview, AIM CMD PRO

1шт.

6

47591913

REMOTE CONTROL

AIM CMD PRO

1шт.

7

47591916

SWITCH

Rocker, Cab, AIM CMD PRO

1шт.

8

47591904

WIRE HARNESS

PSI-1, AIM CMD PRO

1шт.

9

47584836

WIRE HARNESS

Proview Pigtail

1шт.

10

47600698

WIRE HARNESS

GPS

1шт.

11

47416268

WIRE CONNECTOR

DT SRS 6w REC, HSG

4шт.

12

47416270

ELEC CONNECTOR

DT SRS 12w REC, HSG

2шт.

13

342119A1

BOOT

Battery, Red

1шт.

14

342463A1

BOOT

Battery, Black

1шт.

15

BN50062

LOCK NUT,3/8"-16, Stainless Steel

2шт.

16

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

17

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

18

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

19

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

20

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

22

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

23

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

4шт.

24

47609514

MEMORY CARD

2GB, USB

1шт.

25

86017581

FASTENER

Clip D .7MM

2шт.
