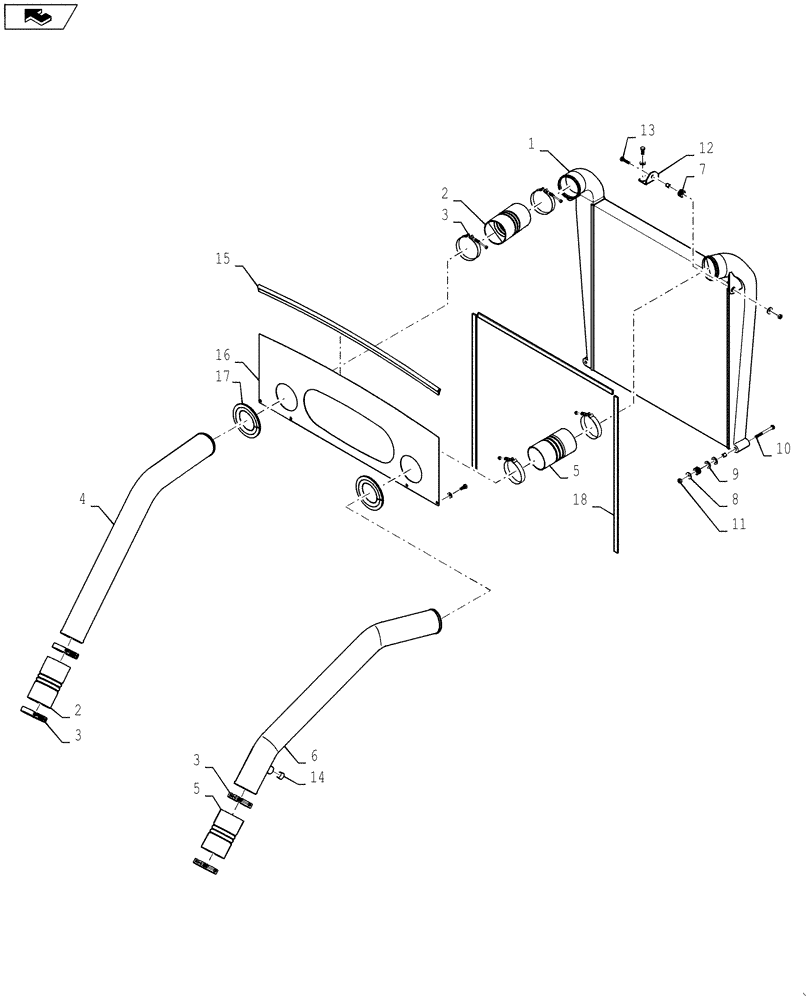

Запчасти Case IH 4430 (10.202.01[01]) - AFTERCOOLER ASSEMBLY (10) - ENGINE

1

437398A1

AFTERCOOLER

Charge Air

1шт.

2

251400A1

BELLOWS

CAC

2шт.

3

349360A1

CLAMP

Spring Hose Clamp

8шт.

4

84237550

TUBE

CAC Hot

1шт.

5

87306140

BELLOWS

CAC

2шт.

6

84294020

AIR INTAKE TUBE

CAC Cool

1шт.

7

434177A1

ISOLATOR

Center Bonded

4шт.

8

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

.406 X 1.125 X .134 In, HDN, DOR

4шт.

9

BN50179

WASHER

CAC Mount

4шт.

10

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 X 100 CL8.8, DOR

2шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

12

84252508

MOUNT

CAC

2шт.

13

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

14

217-441

PLUG,Hex Soc, 3/4" - 14 NPTF

1шт.

16

84255043

BAFFLE

Hood

1шт.

15

84255669

RUBBER SEAL

Baffle

1шт.

17

87265504

SEAL

Clip On

2шт.

18

BN29710

WEATHERSTRIP

Bulk, Cut to 31 1/2"

3шт.
