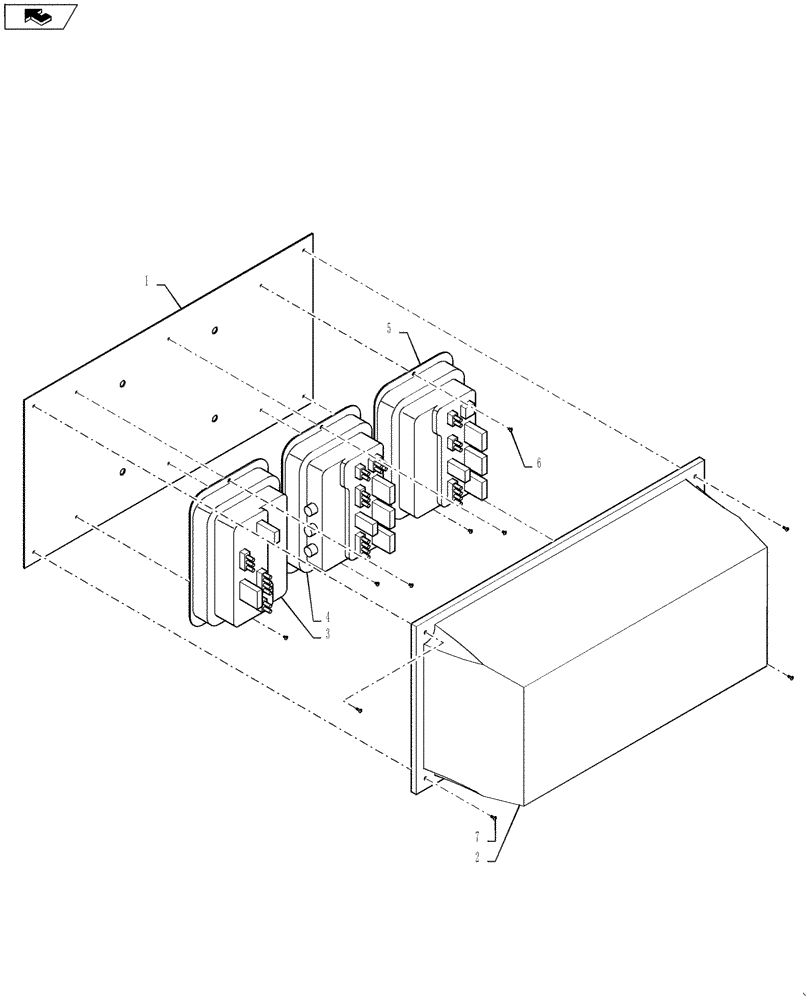

Запчасти Case IH 4430 (55.635.10) - AIM COMMAND CONTROL MODULES, 5 AND 6 SECTION BOOMS (55) - ELECTRICAL SYSTEMS

0

84230046

MODULE

Assembly, Aim Command, Includes Ref 1 - 7

1шт.

1

BN310936

MOUNTING PLATE

Aim Command Modules

1шт.

2

87397540

COVER

Aim Command Modules, Rear Mount

1шт.

3

87271842

MODULE

Master, Aim Command

1шт.

3

87271842R

REMAN-MODULE

Aim Command Master Module

1шт.

3

87271842C

CORE-MODULE

Return Number

1шт.

4

87271843

MODULE

Slave, Aim Command

1шт.

87271843R

REMAN ELECT CONTROL

4430 - PATRIOT SPRAYER TIER 4 - 9/11,

1шт.

87271843C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

84230038

MODULE

PWM Pressure Control

1шт.

5

84230038R

REMAN-MODULE

PWM Pressure Control Module

1шт.

5

84230038C

CORE-MODULE

Return Number

1шт.

6

BN314296

SCREW

M3 x 8mm, Module Mounting

6шт.

7

BN314297

SCREW

M3 x 8mm, Cover Mounting

4шт.
