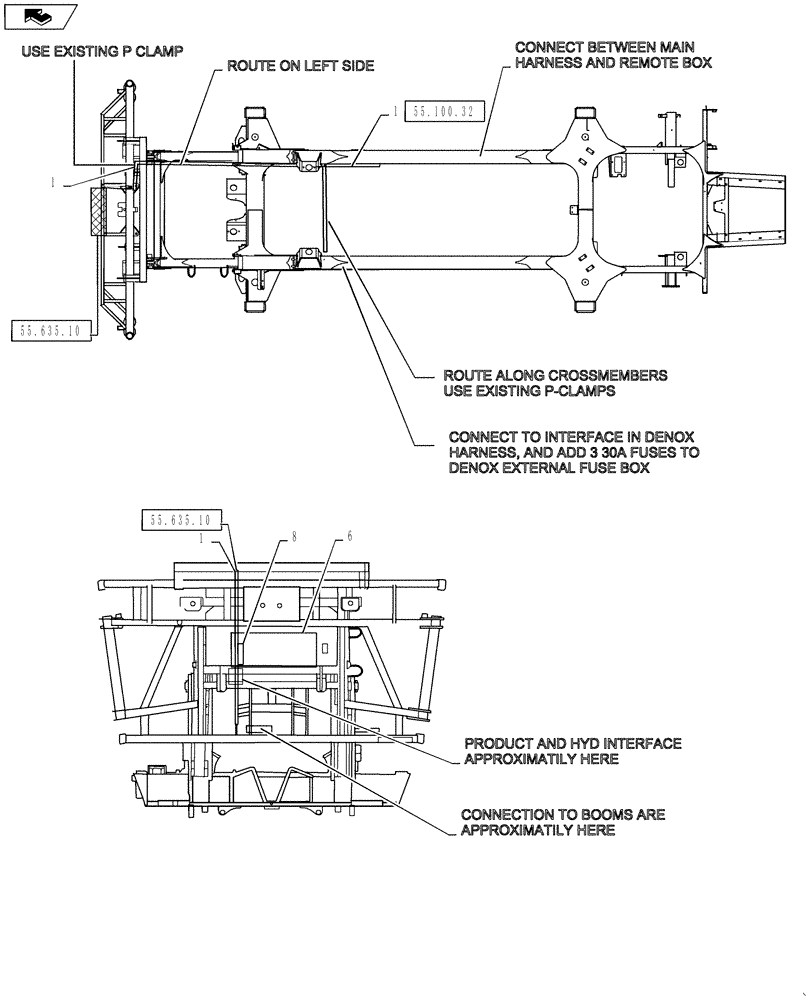

Запчасти Case IH 4430 (55.635.09) - AIM COMMAND, 90/100 BOOM MAIN HARNESS GROUP (55) - ELECTRICAL SYSTEMS

1

84355689

HARNESS

Aim Command Main Frame Harness

1шт.

See Fig 55.100.32 For Service Parts Breakdown

1шт.

2

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

9шт.

6

87271089

BRACKET, SUPPORTING

Aim Command Mount

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

8

BN324107

MODULE

Aim Command By-Pass

1шт.
