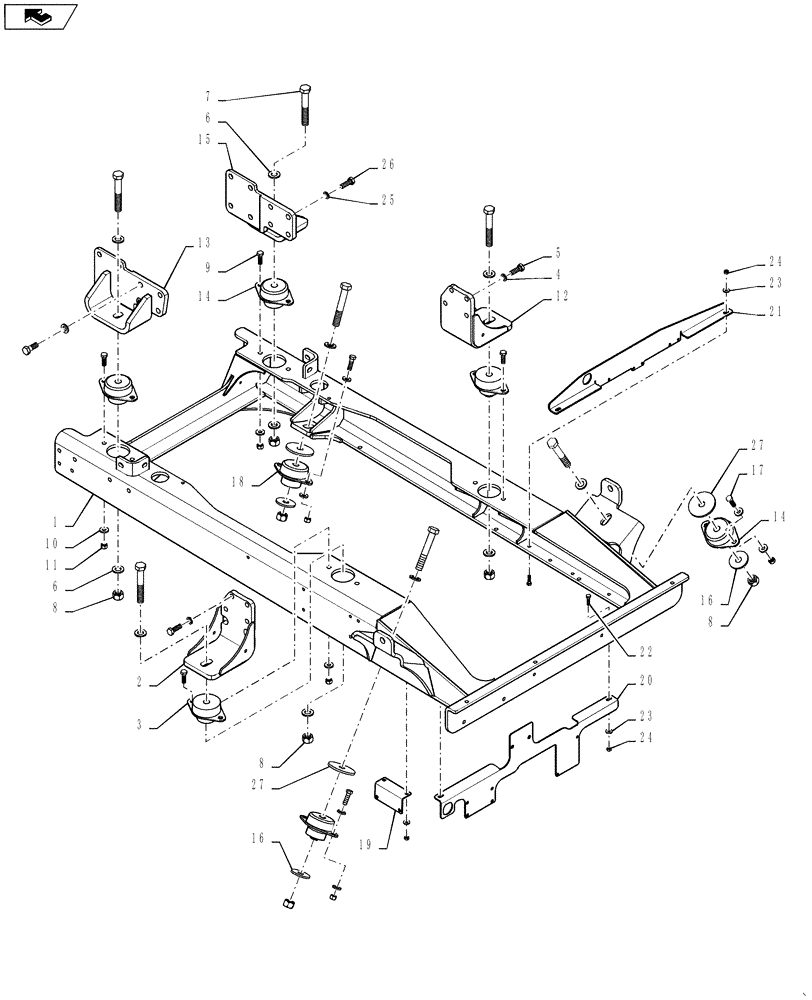

Запчасти Case IH 4430 (10.012.01) - ENGINE MOUNT (10) - ENGINE

1

84237526

FRAME

Engine Mount Subframe

1шт.

2

84225209

ENGINE MOUNT

Front, Right Hand

1шт.

3

BN304252

MOUNTING PARTS

Engine Isolator Mount

2шт.

4

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

8шт.

5

87672180

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

8шт.

6

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

12шт.

7

87341998

BOLT,Hex, M20 x 130mm, Cl 10.9

M 20 x 130, CL10.9, DOR

8шт.

8

87024336

NUT,M20 x 2.5, Cl 10

8шт.

9

87342014

BOLT,M12 x 1.75 x 35mm, Class 10.9

M12-1.75 X 35, 10.9, DOR

8шт.

10

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4MM, HTS, DOR

16шт.

11

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

16шт.

12

84526581

ENGINE MOUNT

Front, Left Hand

1шт.

13

84296603

ENGINE MOUNT

Rear, Right Hand

1шт.

14

BN324263

MOUNTING PLATE

Center, Bonded

4шт.

15

84296607

ENGINE MOUNT

Rear, Left Hand

1шт.

16

BN322925

WASHER

M20, Rebound

4шт.

17

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

8шт.

18

BN322889

MOUNTING PLATE

Center, Bonded

2шт.

19

87266513

BRACKET, SUPPORTING

Return Manifold Mount

1шт.

20

84264254

MOUNT

Valve

1шт.

21

84264260

MOUNT

Valve

1шт.

22

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

6шт.

23

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

24

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

25

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4MM, HTS, DOR

8шт.

26

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

8шт.

27

84528936

WASHER

Rebound

4шт.
