Запчасти Case IH 4430 (55.515.17) - AUTOFOLD SENSORS, 120 BOOM (55) - ELECTRICAL SYSTEMS

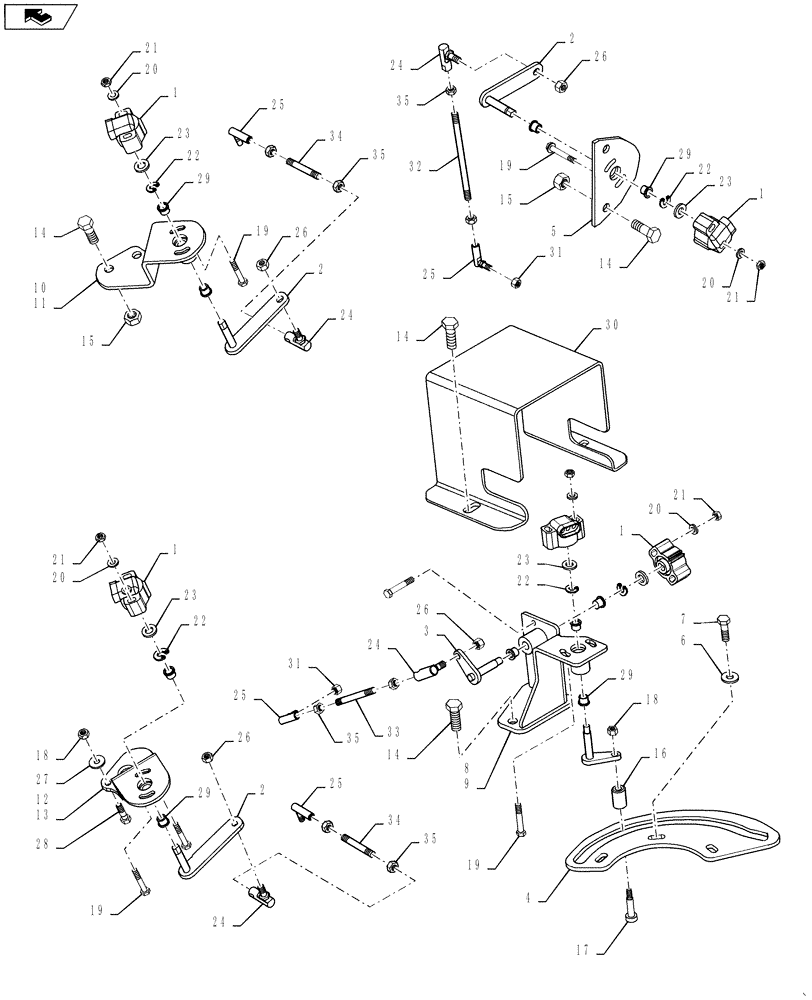

Схема запчастей Case IH 4430 - (55.515.17) - AUTOFOLD SENSORS, 120 BOOM (55) - ELECTRICAL SYSTEMS
24
14
15
17
25
23
29
25
6
29
4
18
1
14
7
14
22
2
5
26
29
29
22
1
19
14
27
8
11
20
26
1
23
23
20
24
10
24
13
31
16
18
35
34
home
32
25
3
9
19
21
28
2
24
20
20
35
31
19
22
23
19
26
25
22
34
15
26
1
35
21
21
30
12
21
2
33
35

Артикул

Название

Примечание

Количество

1

86616339

SENSOR,CCW

Autofold

9шт.

2

87046644

ROD

5шт.

3

431034A1

ARM

Potentiometer

4шт.

4

87482929

CAM

Pivot Sensor

2шт.

5

87484198

MOUNT

Center Section Sensor

1шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

7

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

8

87487940

MOUNT

LH Boom Pivot Sensor

1шт.

9

87487944

MOUNT

RH Boom Pivot Sensor

1шт.

10

87488490

MOUNT

RH Boom Mid Sensor

1шт.

11

87488488

MOUNT

LH Boom Mid Sensor

1шт.

12

87488492

MOUNT

LH Boom Outer Sensor

1шт.

13

87488494

MOUNT

RH Boom Outer Sensor

1шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

14шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

16

87488496

ROLLER

Cam, Poly

2шт.

17

87495287

HEX SOC SCREW,Shoulder, M6 - 8 x 25 mm, Cl 12.9

2шт.

18

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

19

BN316803

SCREW,#10 - 24 x 1 1/2", SST

#10-24 x 1.5, Stainless Steel

18шт.

20

BN310265

WASHER

#10, Stainless Steel

18шт.

21

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

18шт.

22

86640147

SNAP RING,#31, Ext, E-Type

9шт.

23

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

9шт.

24

A10329

BALL JOINT,1/4" - 28 x 1"

1/4" Ball

7шт.

25

86550597

BALL JOINT,1/4" -28 x 1

Quick Disconnect

7шт.

26

231-2444

NUT,1/4"-28, GB

7шт.

27

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

28

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

29

87492420

BUSHING

8 mm ID X 9.6 mm OD X 8 mm Long, Flanged

18шт.

30

87488487

COVER

Pivot Position Sensors

2шт.

31

20332

LOCK NUT,#10-32, GB

3шт.

32

84135001

TIE-ROD

1/4" -28 x 136mm, DOR, Center Position Sensor

1шт.

33

84135002

TIE-ROD

1/4" -28 x 78mm, DOR, Pivot Position Sensors

2шт.

34

84135003

TIE-ROD

1/4" -28 x 52mm, DOR, Mid and Outer Boom Fold Position Sensors

4шт.

35

86976064

JAM NUT,Jam, 1/4"-28, G5

14шт.

Выбрано товаров: 35
