(55.515.14[02]) - ADDITIONAL SENSORS FOR AUTOBOOM, SN YBT031929 AND AFTER

Запчасти Case IH 4430 (55.515.14[02]) - ADDITIONAL SENSORS FOR AUTOBOOM, SN YBT031929 AND AFTER (55) - ELECTRICAL SYSTEMS

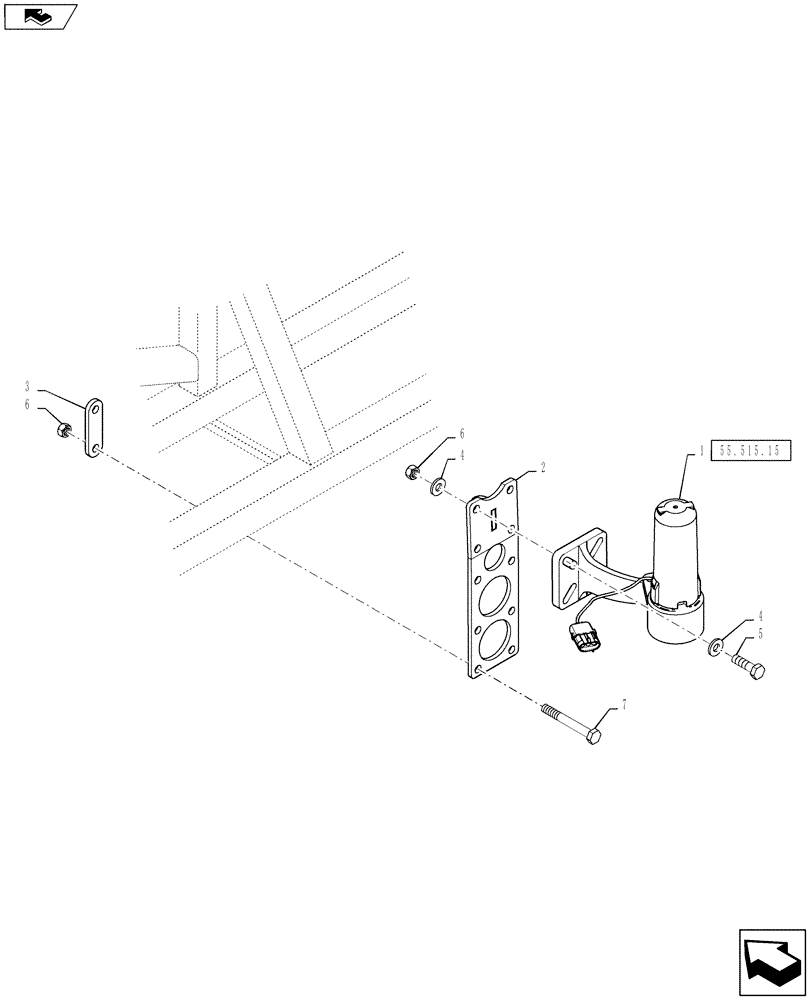

Схема запчастей Case IH 4430 - (55.515.14[02]) - ADDITIONAL SENSORS FOR AUTOBOOM, SN YBT031929 AND AFTER (55) - ELECTRICAL SYSTEMS
5
6
55.515.15
4
7
home
3
2
4
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87668162

KIT

Autoboom, Dual Sensor Kit

1шт.

See Fig 55.515.15 For Service Parts Breakdown

1шт.

2

47593329

MOUNT

Tall Sensor Mount

2шт.

3

BN308039

PLATE

Spacer, Red

4шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

5

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

7

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

8шт.

Выбрано товаров: 8
