(55.515.14[01]) - ADDITIONAL SENSORS FOR AUTOBOOM, BSN YBT031929

Запчасти Case IH 4430 (55.515.14[01]) - ADDITIONAL SENSORS FOR AUTOBOOM, BSN YBT031929 (55) - ELECTRICAL SYSTEMS

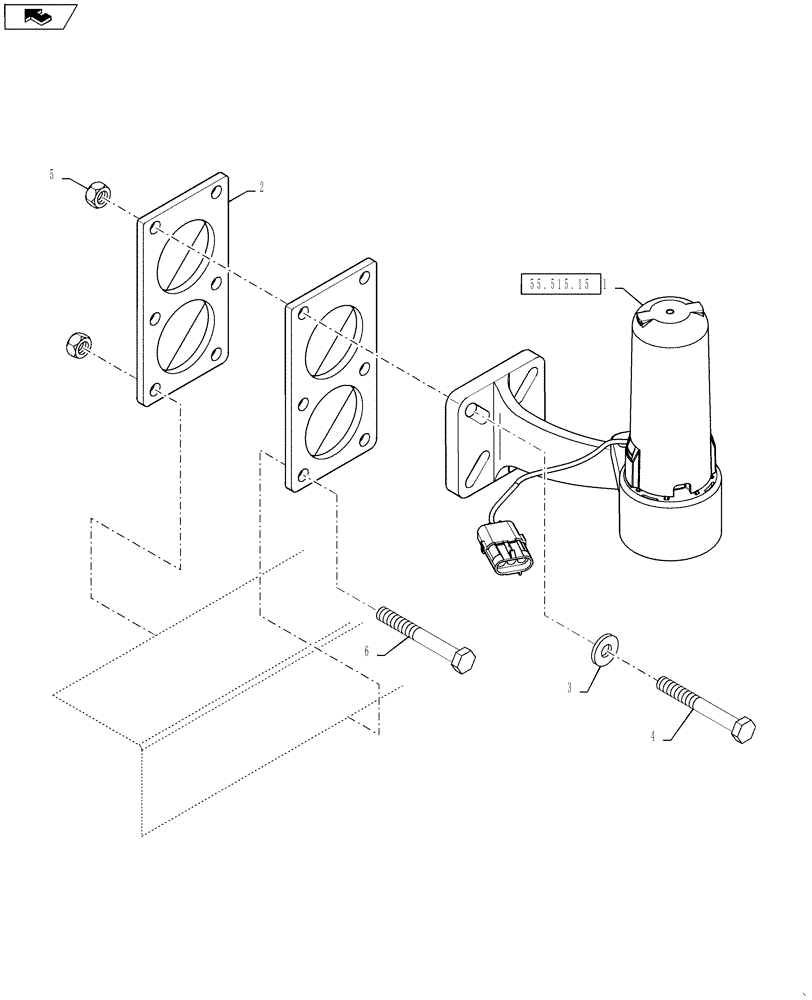

Схема запчастей Case IH 4430 - (55.515.14[01]) - ADDITIONAL SENSORS FOR AUTOBOOM, BSN YBT031929 (55) - ELECTRICAL SYSTEMS
2
1
4
55.515.15
3
6
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87668162

KIT

Autoboom, Dual Sensor Kit

1шт.

See Fig 55.515.15 For Service Parts Breakdown

1шт.

2

84256576

BRACKET

Sensor Mount

4шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

4

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

8шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

6

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

Выбрано товаров: 7
