(55.515.13) - AUTOBOOM WHEEL ASSEMBLY, 120’ BOOM

Запчасти Case IH 4430 (55.515.13) - AUTOBOOM WHEEL ASSEMBLY, 120’ BOOM (55) - ELECTRICAL SYSTEMS

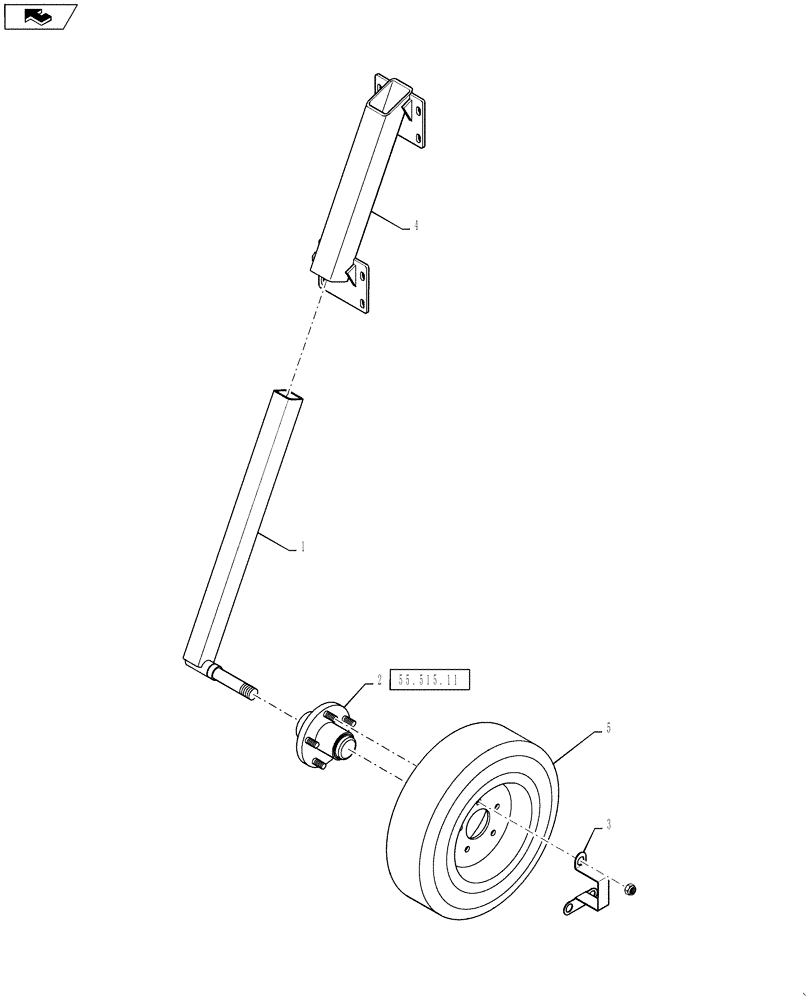

Схема запчастей Case IH 4430 - (55.515.13) - AUTOBOOM WHEEL ASSEMBLY, 120’ BOOM (55) - ELECTRICAL SYSTEMS
55.515.11
1
3
2
4
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87629616

KIT

Autoboom, Wheels 120'

1шт.

1

87719426

BRACKET, SUPPORTING

Axle, 24", Straight

2шт.

2

87711682

HUB

5 Bolt

2шт.

See Fig 55.515.11 For Service Parts Breakdown

1шт.

3

87720308

BRACKET, SUPPORTING

Hub Retainer

2шт.

4

87719424

BRACKET, SUPPORTING

Case IH, 120' Boom

2шт.

5

87719425

TYRE/TIRE

Smooth, 4.8 x 8, 5 Bolt Rim, No Flat

2шт.

Выбрано товаров: 7
