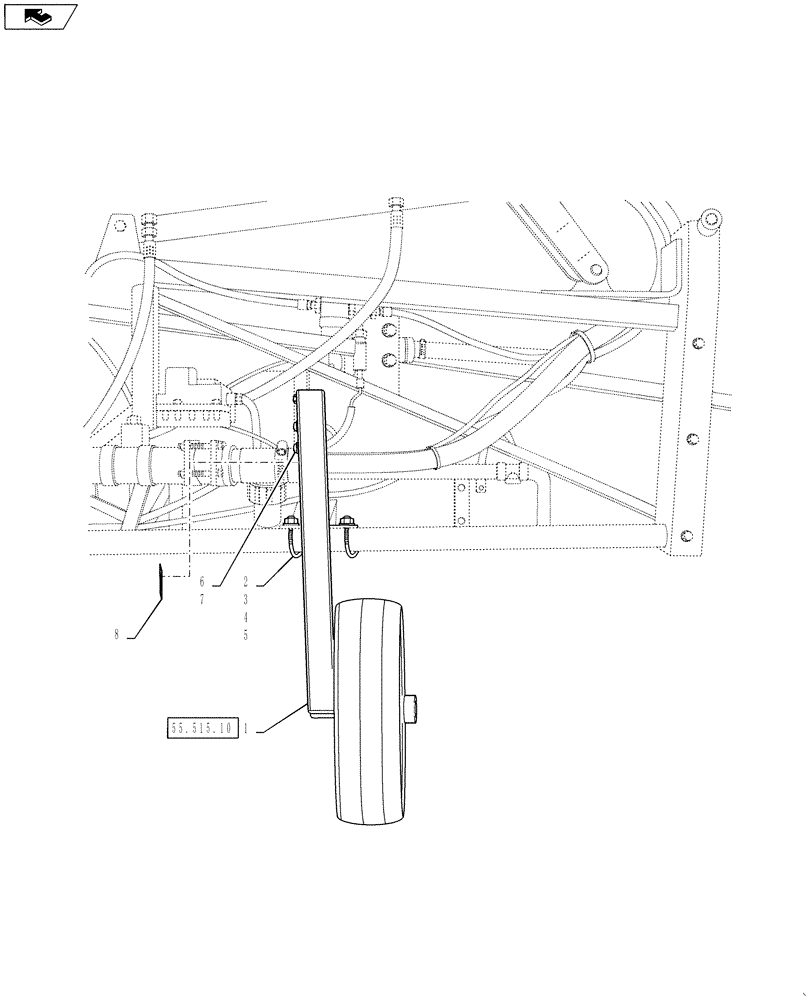

Запчасти Case IH 4430 (55.515.09) - AUTOBOOM WHEELS, 90/100 BOOMS (55) - ELECTRICAL SYSTEMS

1

87487173

KIT

Autoboom Wheel, 90/100

1шт.

See Fig 55.515.10 For Service Parts Breakdown

1шт.

2

BN67284

U-BOLT

3/8-16, Square Bend, 1.25" ID x 2.75" Long

4шт.

3

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

5

BN50146

WASHER,3/8", Stainless

8шт.

6

87343666

NUT

Hex, 1/2"-13, G5

4шт.

7

87310191

BOLT,1/2"-13 x 1-1/2", G5, DOR

4шт.

8

84532318

DECAL

Torque

2шт.
