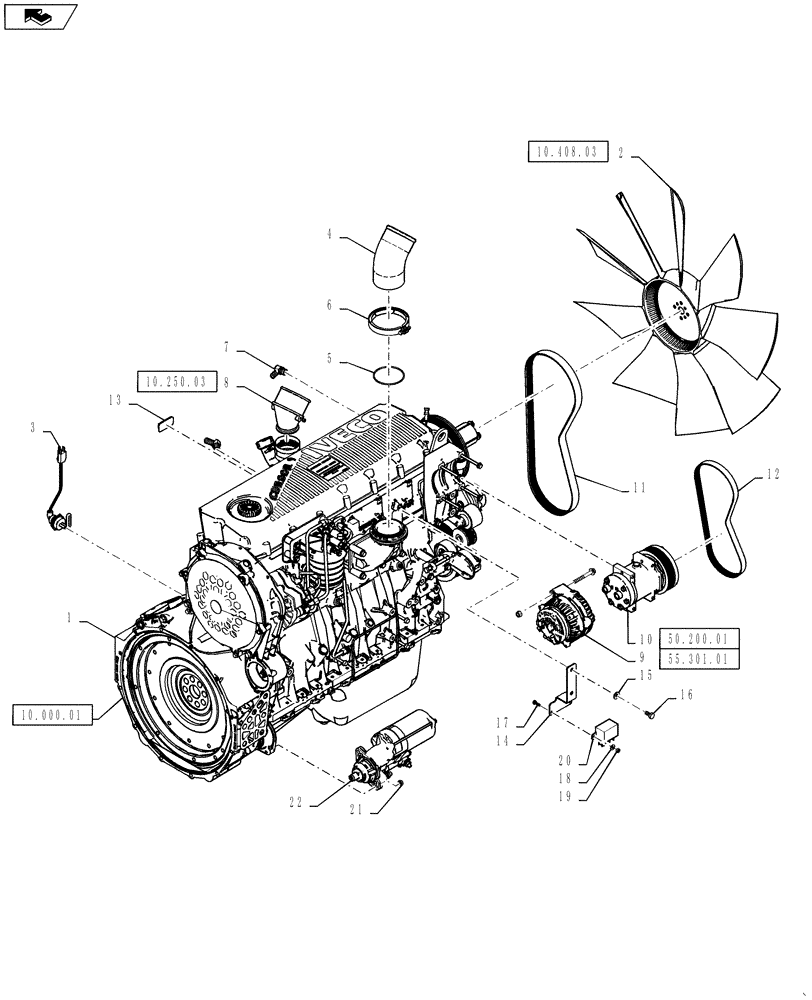

Запчасти Case IH 4430 (10.001.03) - ENGINE ACCESSORIES (10) - ENGINE

1

84538176

ENGINE

Service Engine, 6 Cylinder, FPT, Tier 4A, See 10.000.01 For Index

1шт.

2

Fan And Drive, See 10.408.03 For Breakdown

1шт.

84538176R

REMAN-REPLACEMENT EN

4430 TIER 4 (9/11-)

1шт.

84538176ER

REMAN-REPLACEMENT EN

4430 TIER 4 (9/11-)

1шт.

84538176C

CORE-REPLACEMENT ENG

Retrun Number

1шт.

84538176EC

CORE-EPA ENGINE

Return number

1шт.

84538176EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

47825920R

REMAN-BASIC ENGINE

Reman Basic Level Cursor Engine Corresponding To Replacement Level Part Number 84538176.

1шт.

47825920C

CORE-BASIC ENGINE

Return Number

1шт.

3

84438887

HEATER

Block Heater

1шт.

4

84225203

AIR INTAKE

1шт.

5

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

6

87304529

SPECIAL CLAMP,125mm - 129mm

V-Band

1шт.

7

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

2шт.

8

Turbo Elbow, See 10.250.03 For Breakdown

1шт.

9

Alternator, See 55.301.01 For Breakdown

1шт.

10

A/C Compressor, See 50.200.01

1шт.

11

84477521

BELT

Fan

1шт.

12

84292913

BELT,2203.00 mm L

A/C Alternator

1шт.

13

84373430

EMBLEM

Case - IH, Engine

1шт.

14

84396516

MOUNT

Relay

1шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

16

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20, 8.8, DOR

2шт.

17

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

18

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

19

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

20

86619908

RELAY,12V, 150A

Grid Heater, And Alternator

2шт.

21

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

3шт.

22

84150030

STARTER MOTOR,12V, 5kW

1шт.

84150030R

REMAN-STARTER,12V, 5kW

4430 TIER 4 (9/11-)

1шт.

84150030C

CORE-STARTER,12V, 5kW

Return Number

1шт.
