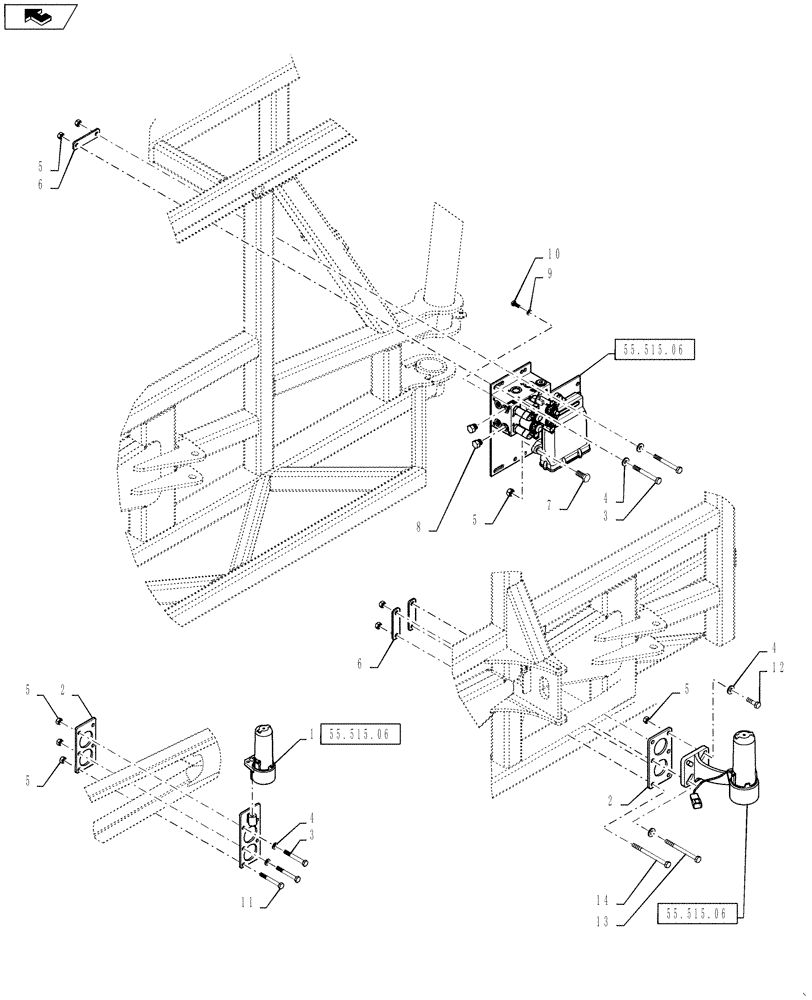

Запчасти Case IH 4430 (55.515.04[01]) - AUTOBOOM MOUNTING PARTS, 120 BOOM, BOOM LEVEL AND HEIGHT CONTROL, BSN YBT031929 (55) - ELECTRICAL SYSTEMS

1

84247474

SERVICE KIT

Autoboom, 120', Includes Control Node, Hydraulic Valve, Harnesses, and Sensors

1шт.

See Fig 55.515.06 For Service Parts Breakdown

1шт.

2

84256576

BRACKET

Sensor Mount

5шт.

3

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

25шт.

6

87620862

PLATE

2.5" Tube

4шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

8

BN446048

PLUG

9/16" -18 ORB

2шт.

9

80681

LOCK WASHER,5/16"

4шт.

10

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

11

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

12

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

13

86980413

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

2шт.

14

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.
