Запчасти Case IH 4430 (55.515.03) - AUTOBOOM CONTROL KIT, 90/100 BOOM (55) - ELECTRICAL SYSTEMS

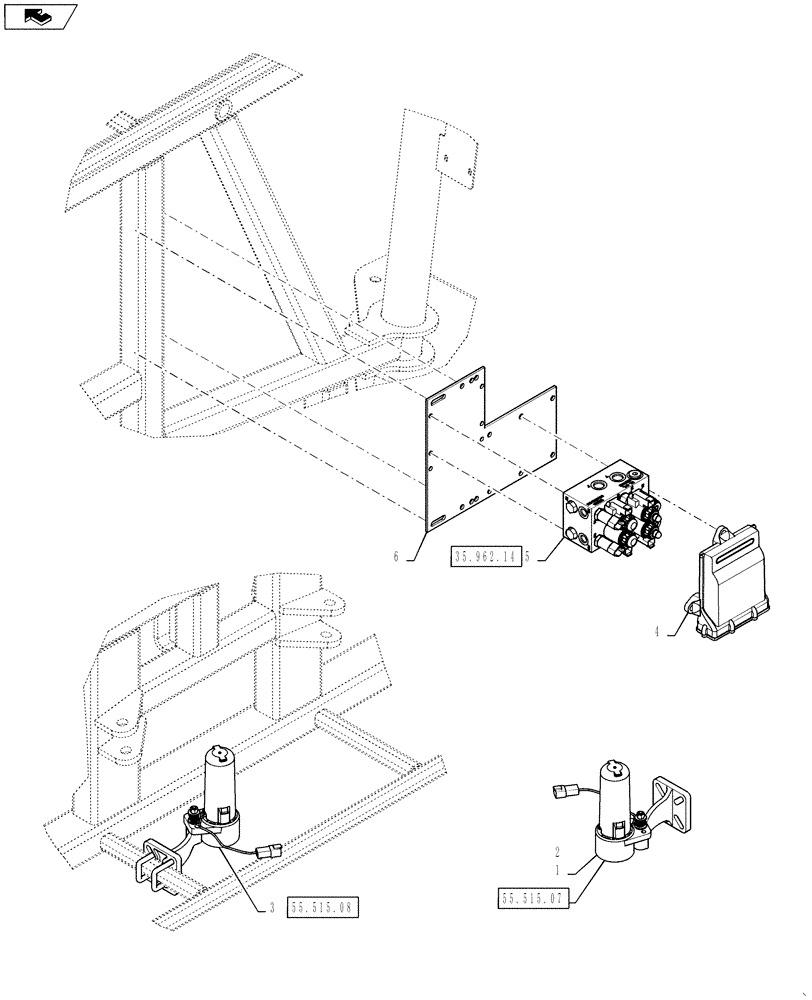

Схема запчастей Case IH 4430 - (55.515.03) - AUTOBOOM CONTROL KIT, 90/100 BOOM (55) - ELECTRICAL SYSTEMS
1
4
3
5
55.515.08
35.962.14
55.515.07
2
home
6

Артикул

Название

Примечание

Количество

47545007

CONTROLLER

DIA Kit, Autoboom Control, 90'/100', Includes Ref 1 - 10

1шт.

1

87710685

SENSOR

Ultrasonic, Right Hand

1шт.

See Fig 55.515.07 For Service Parts Breakdown

1шт.

2

87710686

SENSOR

Ultrasonic, Left Hand

1шт.

See Fig 55.515.07 For Service Parts Breakdown

1шт.

3

84247475

SENSOR

Ultrasonic, Digital, 4 Pin, Center

1шт.

See Fig 55.515.08 For Service Parts Breakdown

1шт.

4

87717349

MODULE

Autoboom Node, CAN Control

1шт.

87717349R

REMAN-MODULE

4430 - PATRIOT SPRAYER TIER 4 - 9/11-

1шт.

87717349C

CORE-MODULE

Return Number

1шт.

5

84299098

HYDRAULIC VALVE

Autoboom

1шт.

See Fig 35.962.14 For Service Parts Breakdown

1шт.

6

87718266

MOUNTING PLATE

Autoboom Node and Hydraulic Valve

1шт.

7

84180940

WIRE HARNESS

60' Extension, Ultrasonic Sensor, Not Shown

2шт.

8

84241505

WIRE HARNESS

Autoboom Control, Not Shown

1шт.

9

87718974

SERVICE MANUAL

Autoboom Calibration, Not Shown

1шт.

10

87718973

SERVICE MANUAL

Autoboom, Case IH, Not Shown

1шт.

Выбрано товаров: 17
