Запчасти Case IH 4430 (55.515.02[02]) - AUTOBOOM HYDRAULIC HOSES, 90/100, BOOM LEVEL AND HEIGHT CONTROL, SN YBT031929 AND AFTER (55) - ELECTRICAL SYSTEMS

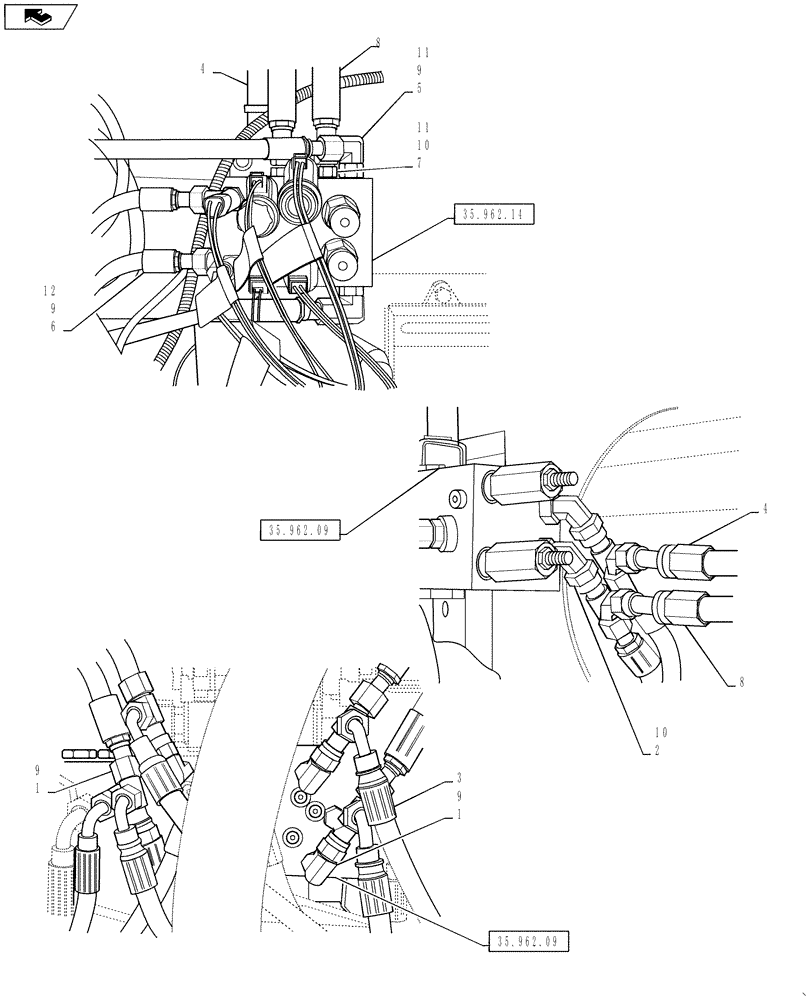

Схема запчастей Case IH 4430 - (55.515.02[02]) - AUTOBOOM HYDRAULIC HOSES, 90/100, BOOM LEVEL AND HEIGHT CONTROL, SN YBT031929 AND AFTER (55) - ELECTRICAL SYSTEMS
11
4
6
11
10
5
8
10
2
9
35.962.14
35.962.09
35.962.09
home
7
4
12
9
1
1
3
8
9
9

Артикул

Название

Примечание

Количество

1

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

4шт.

2

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

2шт.

3

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

11/16 -16 ORFS Swivel Medium Elbow x 11/16 -16 ORFS Swivel x 3/8" ID x 42" Long, Autoboom Valve to Boom Valve Bank

4шт.

4

87487132

HOSE ASSY.

13/16 -16 ORFS Swivel x 13/16 -16 ORFS Swivel x 1/2" ID x 32" Long, Autoboom Valve to Pressure Port on Boom Valve Bank

1шт.

5

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90°

2шт.

6

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

7

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

2шт.

8

87487133

HOSE ASSY.

13/16 -16 ORFS Swivel x 13/16 -16 ORFS Swivel x 1/2" ID x 34" Long, Autoboom Valve to Tank Port on Boom Valve Bank

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

16шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

8шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

4шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

Выбрано товаров: 12
