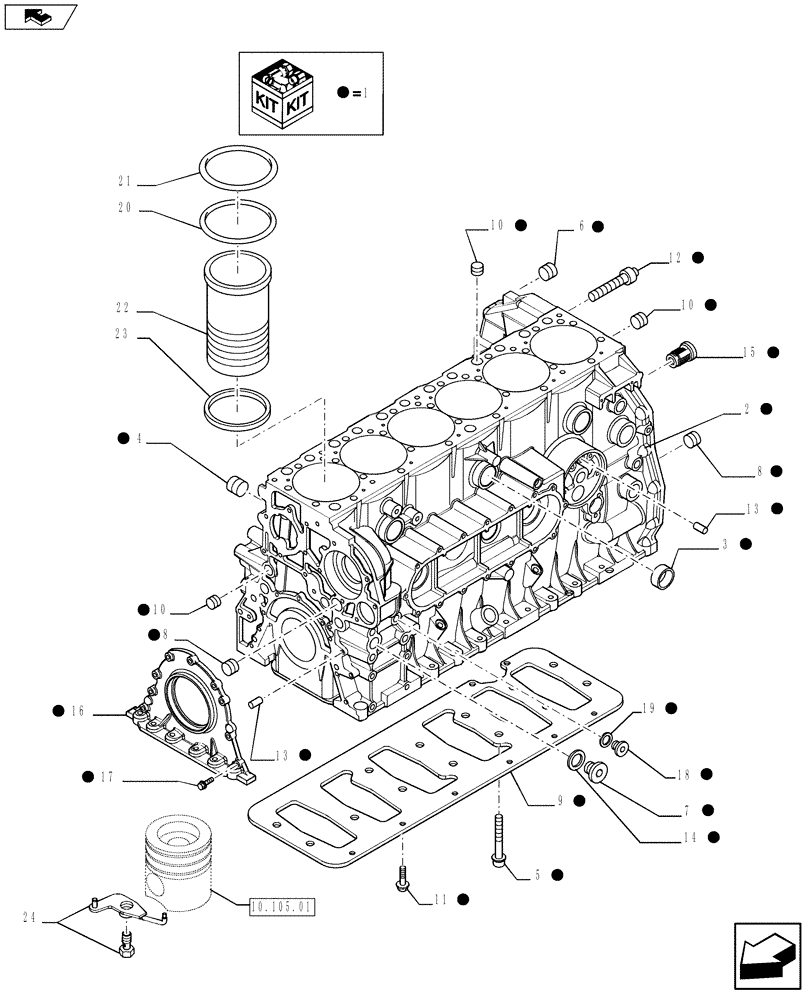

Запчасти Case IH 4430 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504361662 - 504311100 - 504248099) (10) - ENGINE

1

504219039

CYLINDER BLOCK

ASSY

1шт.

2

504219039

CYLINDER BLOCK

1шт.

3

16991370

PLUG

D = 45 mm

1шт.

4

98472271

PLUG

3шт.

5

504125417

SCREW

M12 x 2

14шт.

6

98472270

PLUG

1шт.

7

16992515

PLUG

M18 x 1.5

1шт.

8

16990870

PLUG

D = 28 mm

3шт.

9

504127723

PLATE

1шт.

10

16990670

PLUG,Lock, 22mm Dia

D = 22 mm

10шт.

11

16587025

SCREW,Hex, M10 x 20mm, Cl 8.8

M10 x 20

12шт.

12

500356932

PLUG

D = 12 mm

3шт.

13

500314967

DOWEL

D = 10 mm

3шт.

14

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

D = 18 x 26 mm

1шт.

15

504142601

VALVE

1шт.

16

504125098

COVER ASSY

1шт.

17

16586425

BOLT,M8 x 25mm

M8 x 25

9шт.

18

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

19

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

20

99459175

GASKET

120.24 x 3.53

6шт.

21

99459176

GASKET

120.24 x 3.53

12шт.

22

504305869

LINER, ENGINE CYLIND

6шт.

23

504128648

SHIM

SP=0.08 mm

6шт.

23

504128649

SHIM

SP=0.1 mm

6шт.

23

504128650

SHIM

SP=0.12 mm

6шт.

23

504128651

SHIM

SP=0.14 mm

6шт.

24

504127000

LUBE OIL NOZZLE,FOR PISTON FEDERAL MOGUL

LUBE OIL JET NOZZLE

6шт.

24

504236099

LUBE OIL NOZZLE,FOR PISTON MAHLE

6шт.
