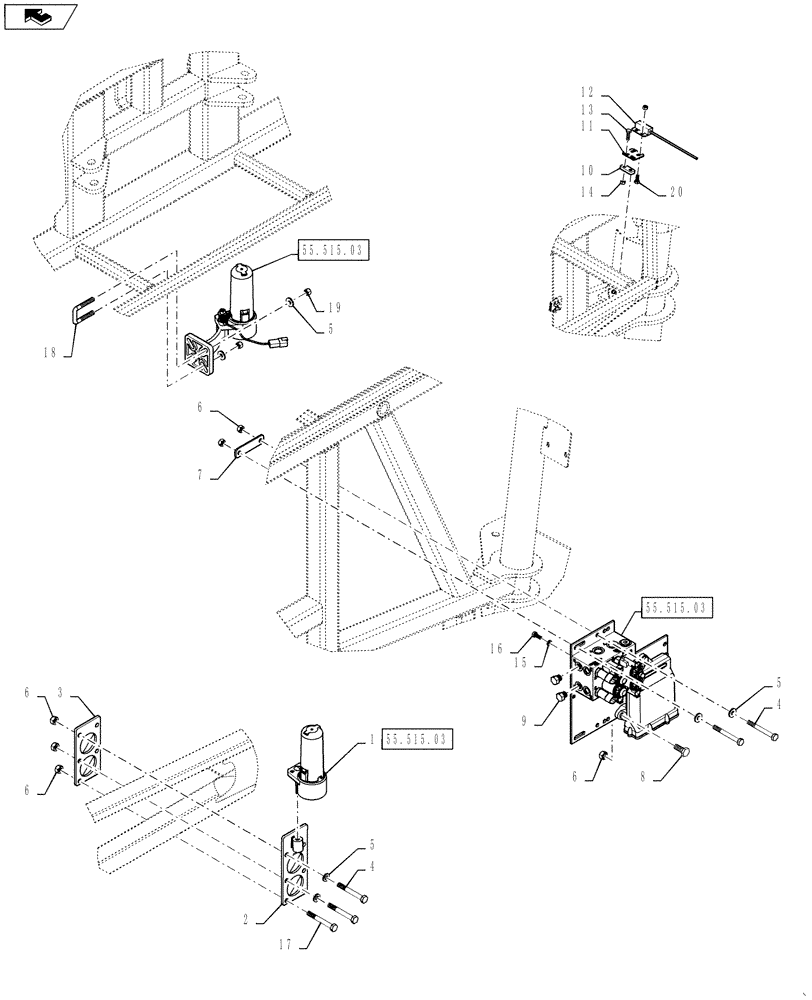

Запчасти Case IH 4430 (55.515.01[01]) - AUTOBOOM MOUNTING PARTS, 90/100, BOOM LEVEL AND HEIGHT CONTROL, BSN YBT031929 (55) - ELECTRICAL SYSTEMS

1

47545007

CONTROLLER

DIA Kit, Autoboom Control, 90'/100', Includes Control Node, Hydraulic Valve, Harnesses, and Sensors

1шт.

See Fig 55.515.03 For Service Parts Breakdown

1шт.

2

84255690

BRACKET

Sensor Mount

2шт.

3

84256576

BRACKET

Base, Sensor Mount

2шт.

4

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

19шт.

7

87620862

PLATE

Backer, 2.5" Tube

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

9

BN446048

PLUG

9/16" -18 ORB

2шт.

10

84330820

SPACER

Position Sensor

2шт.

11

84330829

SUPPORT

Position Sensor

2шт.

12

BN315498

SWITCH

Proximity Sensor, With Diode

2шт.

13

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

14

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

15

80681

LOCK WASHER,5/16"

4шт.

16

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

17

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

18

BN67284

U-BOLT

3/8-16, Square Bend, 1.25" ID x 2.75" Long

2шт.

19

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

4шт.

20

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.
