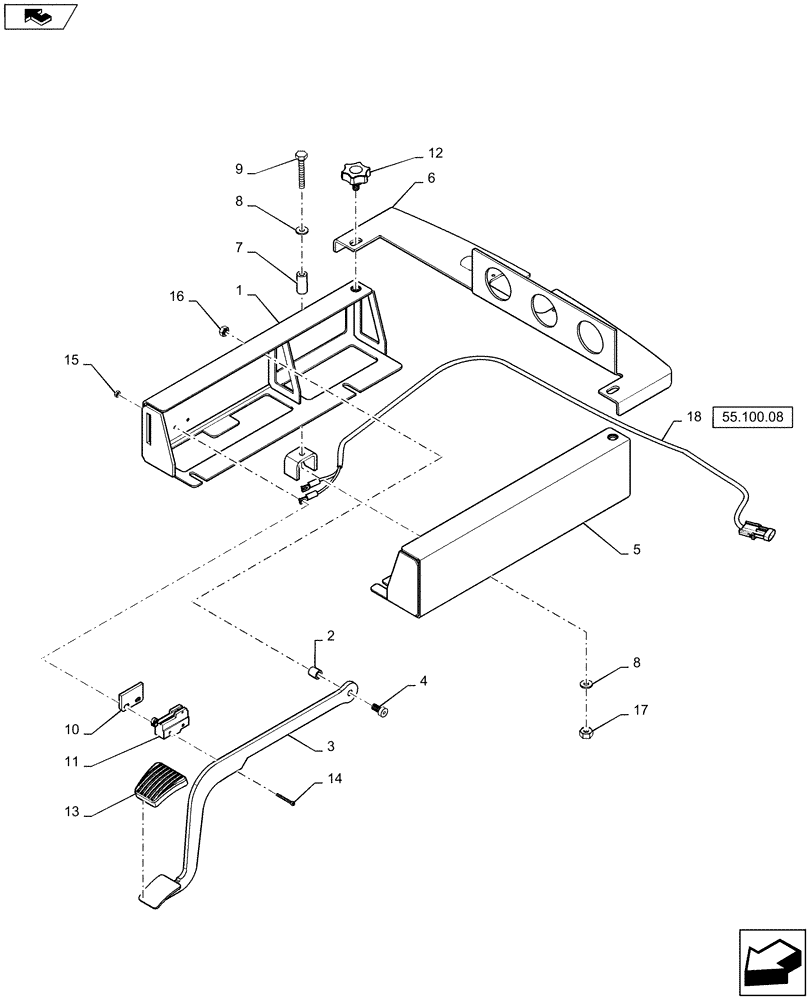

Запчасти Case IH 4430 (55.510.07) - TRACTION CONTROL (55) - ELECTRICAL SYSTEMS

1

342840A1

FRAME

RH Seat Cowling

1шт.

2

BN324429

SPACER

Tube

1шт.

3

BN324433

LEVER

Traction Control Pedal

1шт.

4

BN324431

BOLT

M6-1, Shoulder Bolt, 8 X 16

1шт.

5

84141538

FRAME

LH Seat Cowling

1шт.

6

87271609

SUPPORT

Wire Harness

1шт.

7

BN324420

SPRING

Spacer

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

9

86980384

BOLT,Hex, M8 x 45mm, Cl 8.8

HD, M8 X 4.5, CL8.8 DOR

1шт.

10

87269472

SPACER

Traction Control Engage Switch

1шт.

11

141655A1

SWITCH

Traction Control Engage

1шт.

12

394133A1

KNOB

M10 x 1.5

2шт.

13

323657A1

PAD

Traction Control Pedal

1шт.

14

840-1330

BOLT,Pan, M3 x 0.5 x 30mm, Gr 4.8

2шт.

15

824-1403

NUT,M3, Cl 5

2шт.

16

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

18

84362133

HARNESS

Traction Control

1шт.

See Fig 55.100.08 For Service Parts Breakdown

1шт.
