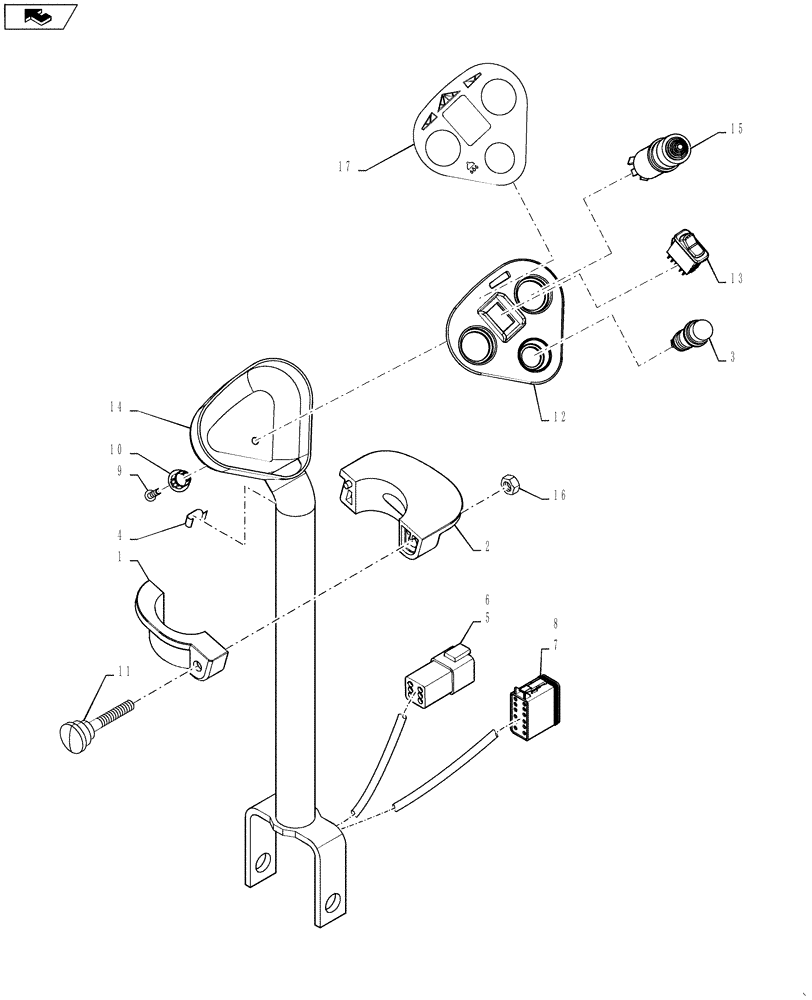

Запчасти Case IH 4430 (55.510.05) - PROPULSION CONTROL LEVER ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

116150A1

SUPPORT

Palm Rest LH

1шт.

2

116152A1

SUPPORT

Palm Rest RH

1шт.

3

127597A1

SWITCH

Unloader

1шт.

4

1343962C1

CLIP,ELECTRICAL

Palm Rest

1шт.

5

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 Pin

1шт.

6

225353C1

WEDGE,Lock, Black

1шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

12 Pin

1шт.

8

87055164

WEDGE

1шт.

9

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

1шт.

10

282056A1

PLUG

Double D

1шт.

11

86987885

KNOB

Palm Rest

1шт.

12

389521A1

PLATE

Propulsion Control Lever

1шт.

13

BN321530

SWITCH

Spray On/Off

1шт.

14

113314A2

CONTROL LEVER

Propulsion

1шт.

15

BN324896

SWITCH

Assy Boom Control

2шт.

16

BN50054

NUT,1/4"-20, SS

1шт.

17

84228539

DECAL

Propulsion Control

1шт.
