Запчасти Case IH 4430 (55.510.04) - RH CONSOLE, MAIN ELECTRICAL (55) - ELECTRICAL SYSTEMS

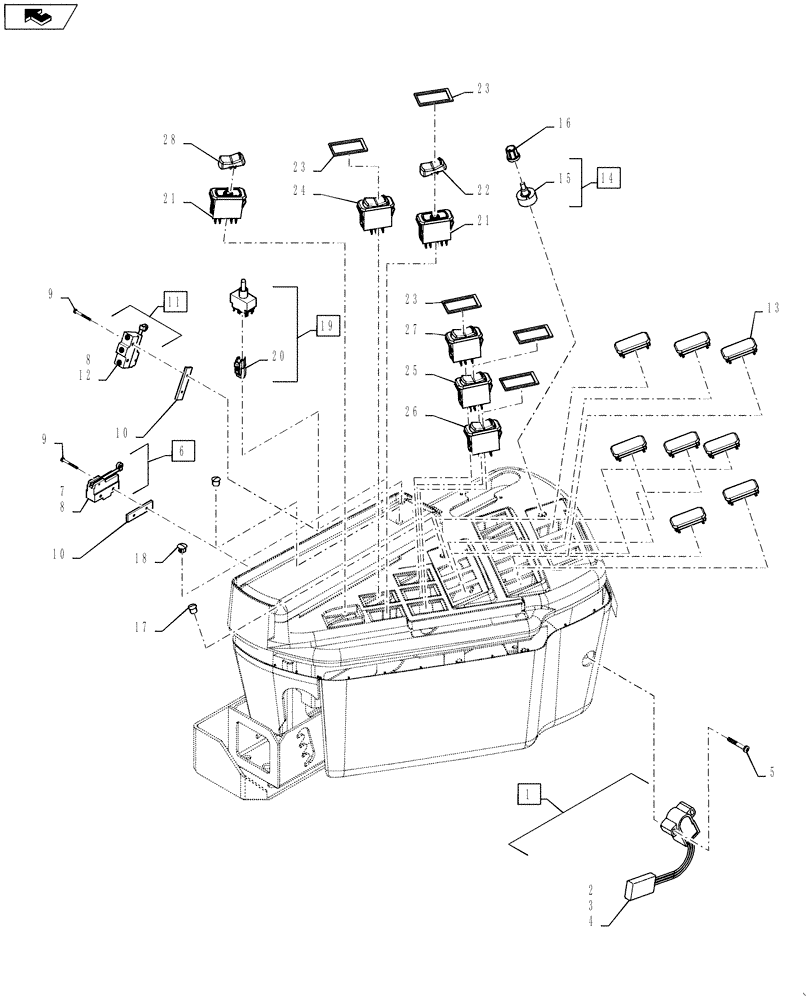

Схема запчастей Case IH 4430 - (55.510.04) - RH CONSOLE, MAIN ELECTRICAL (55) - ELECTRICAL SYSTEMS
3
9
home
6
24
23
16
12
5
8
23
9
23
4
20
28
19
8
25
27
18
14
1
22
21
2
17
10
15
13
26
10
11
7
21

Артикул

Название

Примечание

Количество

1

BN322638

SENSOR

Propel Lever Position Sensor, Includes Ref 2 - 4

1шт.

2

87692858

ELEC CONNECTOR,Male

Propel Lever Position Sensor

1шт.

3

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Terminal, Propel Lever Position Sensor

3шт.

4

225124C1

SEAL,2 - 2.9 mm2

Propel Lever Position Sensor

3шт.

5

87343613

SCREW,Phil Pan Hd, M5 x 35mm, Cl 4.8, Full Thd

M5 x 35, CL 4.8, DOR

2шт.

6

BN323495

ADAPTER

Propel Reverse Switch, Includes Ref 7 and 8

1шт.

7

245484C1

ELEC CONNECTOR,3 Pin

Propel Reverse Switch

1шт.

8

141655A1

SWITCH

Propel Reverse Switch/ Neutral Safety Switch

2шт.

9

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

4шт.

10

87492830

PLATE

Neutral Safety Switch Mounting

2шт.

11

BN323496

TOGGLE SWITCH

Neutral Safety Switch, Includes Ref 8 and 12

1шт.

12

276426A1

ELEC CONNECTOR,Male, 3 Pin

Neutral Safety Switch

1шт.

13

BN322626

PLUG

Rocker Switch Blank

8шт.

14

BN325618

POTENTIOMETER,1000 Ohm

Ground Speed, Includes Ref 15

1шт.

15

225294C1

ELEC CONNECTOR,Male, 3 Pin

Ground Speed

1шт.

16

118780A1

KNOB

Ground Speed Control

1шт.

17

353-402

PLUG,Dome, .375" hole, Nylon

3шт.

18

282056A1

PLUG

Black

1шт.

19

BN323620

SWITCH

Axle In/Out, Includes Ref 20

1шт.

20

225295C1

ELEC CONNECTOR,Female, 3 Pin

Axle In/Out

1шт.

21

87388415

SWITCH

Body

2шт.

22

BN325000

SWITCH

Main Power Rocker

1шт.

23

BN325825

SPACER

Switch

5шт.

24

BN321916

SWITCH

Sparge Pressure

1шт.

25

BN321914

SWITCH

Boom Height

1шт.

26

BN321915

SWITCH

Boom Fold RH

1шт.

27

BN321913

SWITCH

Boom Fold LH

1шт.

28

BN322904

SWITCH

Park Brake Rocker

1шт.

Выбрано товаров: 28
