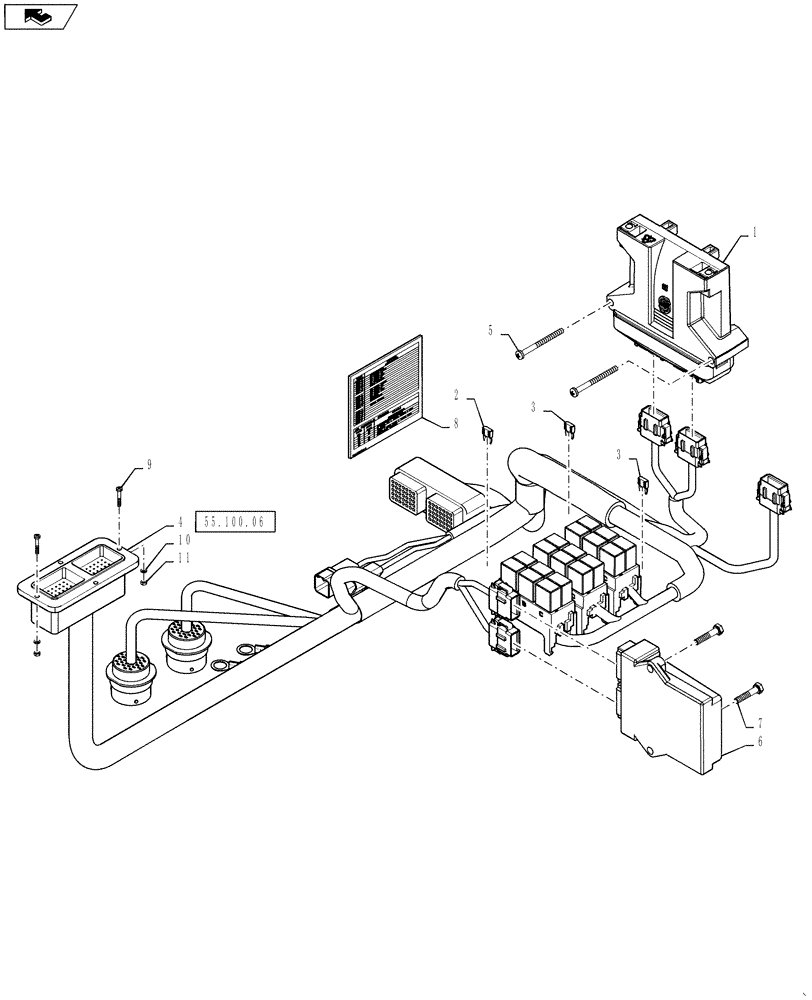

Запчасти Case IH 4430 (55.510.02) - CAB ELECTRICAL, LH COMPARTMENT (55) - ELECTRICAL SYSTEMS

1

84467773

CONTROLLER

Propel

1шт.

2

121412A1

FUSE,10A, Mini, Red

1шт.

3

121413A1

FUSE,15A, Mini, Blue

2шт.

4

84281625

HARNESS

Cab Interface/Bulkhead, BSN YCT032413

1шт.

See Fig 55.100.06 For Service Parts Breakdown

1шт.

4

84469092

WIRE HARNESS

LH Compartment Cab Interface/Bulkhead, SN YCT032413 And After

1шт.

See Fig 55.100.06(02) For Service Parts

1шт.

5

86529074

SCREW,Phil Pan Hd, M5 x 60mm, Cl 4.8

M5 X 60, PHD, 4.8, DOR

2шт.

6

87268815

CONTROL

Node, Can Boom/Speed

1шт.

7

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

8

84150815

DECAL

Fuse/Relay

1шт.

9

86511817

SCREW,Pan, M3 x 0.5 x 20mm, Cl 4.8

M3 x 20, PHD, 4.8, ZND

3шт.

10

86509827

LOCK WASHER,M3

3шт.

11

86508812

NUT,M3, Cl 8

3шт.
