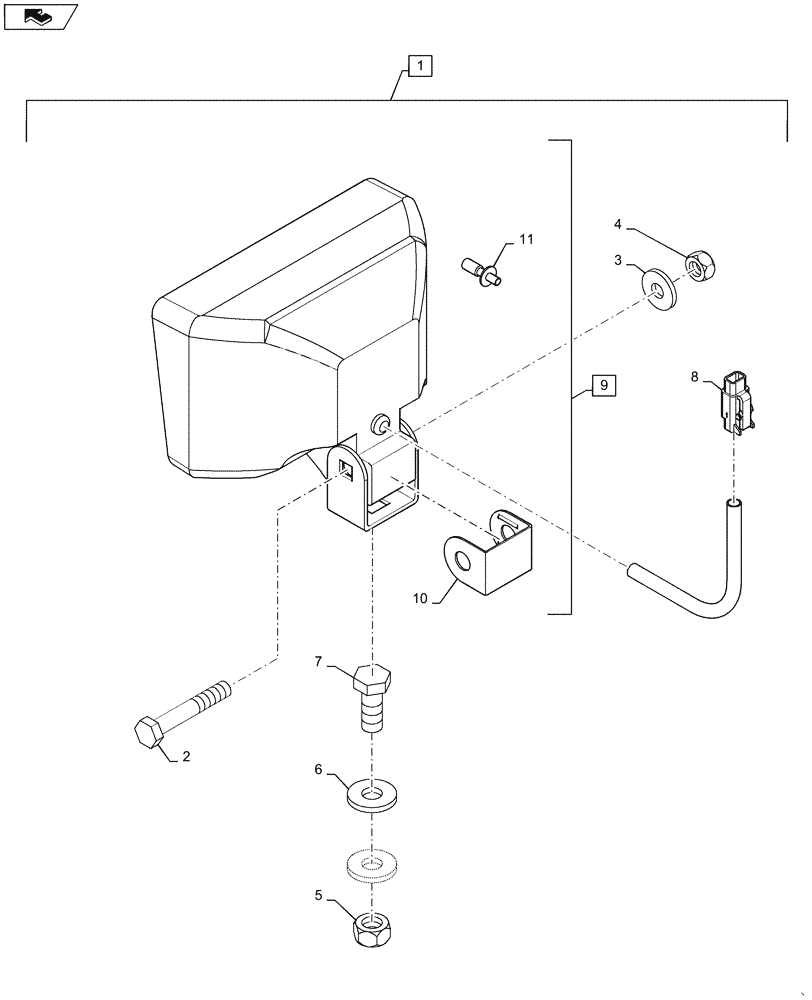

Запчасти Case IH 4430 (55.404.11) - FLOOD LIGHTING ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

87658615

LAMP

Assembly, Includes Ref 1 - 11

1шт.

2

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

8

222135A1

CONNECTOR, ELEC

CONNECTOR

1шт.

9

87658381

WORK LAMP

Assembly, Includes Ref 10-11

1шт.

10

87658412

CLIP

Anti-Drop

1шт.

11

92242C2

BULB,H3, 12V, 35W

H3, 12V, 35W

1шт.
