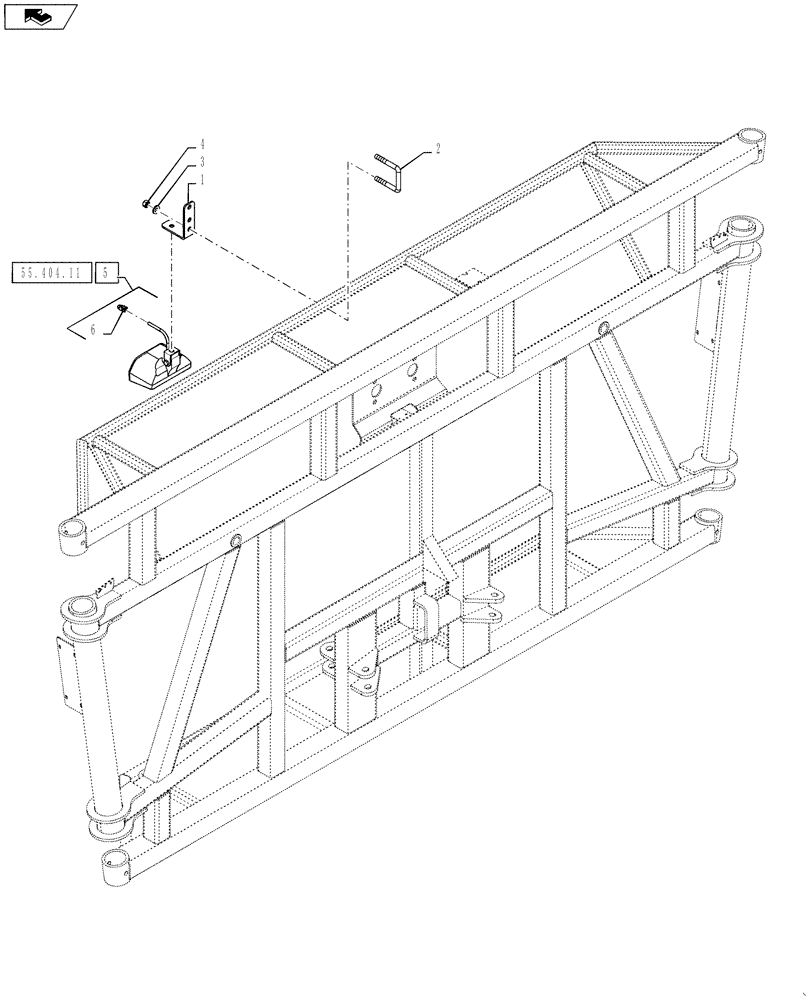

Запчасти Case IH 4430 (55.404.10) - BOOM CENTER SECTION LIGHT, 120’ BOOM (55) - ELECTRICAL SYSTEMS

1

87658595

MOUNTING PLATE

Boom Light, Rear

1шт.

2

87586548

U-BOLT

Square, M10 x 64 mm id x 64

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

5

87658615

LAMP

35W Flood, Assembly, 3" X 5"

1шт.

See Fig 55.404.11 For Service Parts Breakdown

1шт.

6

87658598

WIRE HARNESS

Center Section Light

1шт.

See Fig 55.100.27 For Service Parts Breakdown

1шт.
