Запчасти Case IH 4430 (55.404.09) - BOOM CENTER SECTION LIGHT (55) - ELECTRICAL SYSTEMS

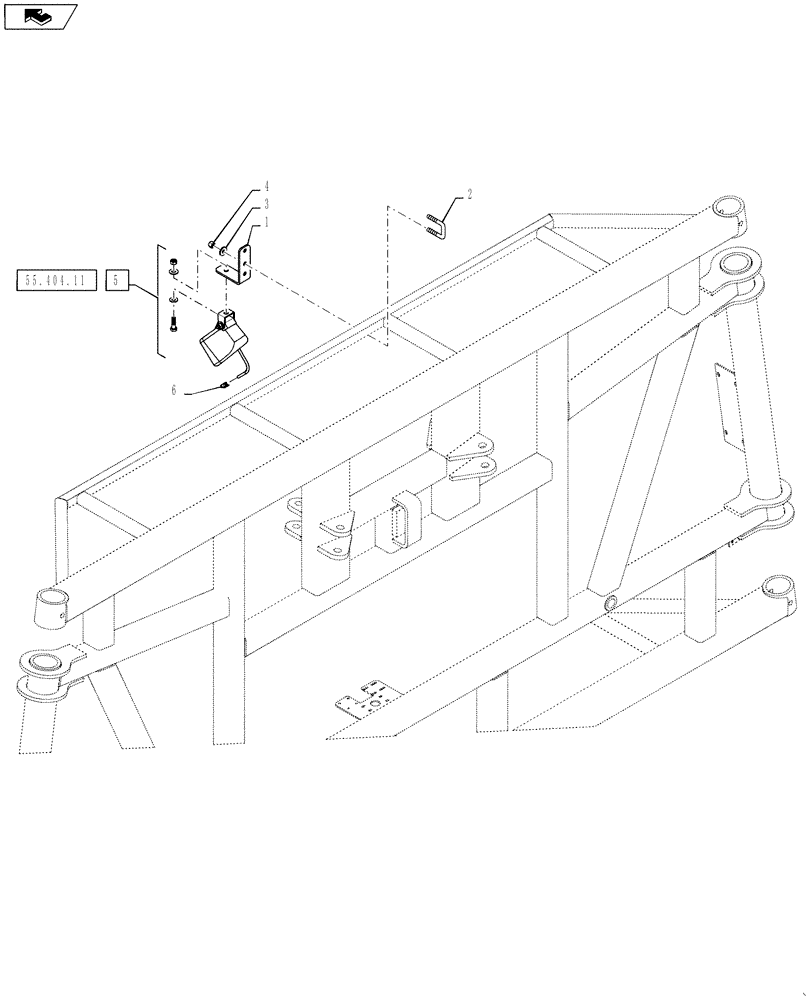

Схема запчастей Case IH 4430 - (55.404.09) - BOOM CENTER SECTION LIGHT (55) - ELECTRICAL SYSTEMS
6
2
4
1
5
55.404.11
home
3

Артикул

Название

Примечание

Количество

1

87658595

MOUNTING PLATE

Boom Light, Rear

1шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

4

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

2шт.

5

87658615

LAMP

35W Flood, Assembly, 3" X 5"

1шт.

See Fig 55.404.11 For Service Parts Breakdown

1шт.

6

87658598

WIRE HARNESS

Center Section Light

1шт.

See Fig 55.100.27 For Service Parts Breakdown

1шт.

Выбрано товаров: 8
