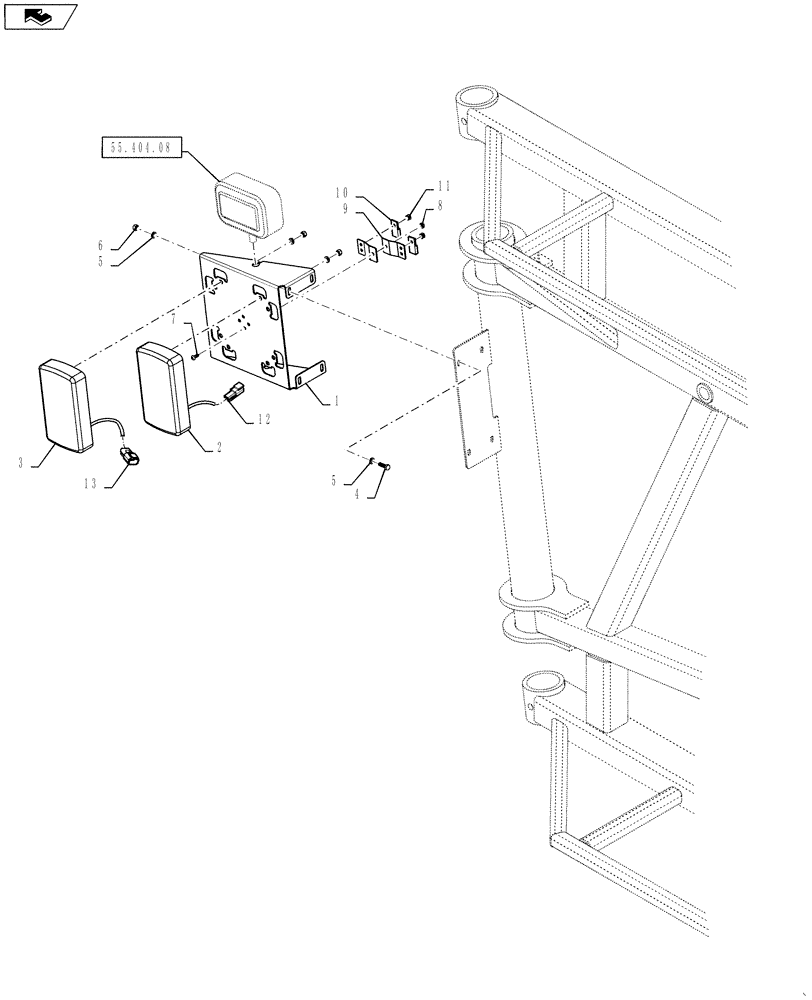

Запчасти Case IH 4430 (55.404.07) - REAR STOP AND SIGNAL LIGHT (55) - ELECTRICAL SYSTEMS

1

87267089

MOUNTING PLATE

Tail Light, (LED)

2шт.

2

84385294

LAMP

Stop/Tail, LED Red, 12V, 24 LED Pattern

2шт.

3

84385299

LAMP

Turn, LED Amber, 12V, 24 LED Pattern

2шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

16шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

24шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

16шт.

7

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

10-32 X 1/2 SS PH, PHILLIP

2шт.

8

225-30210

NUT,#10-32, Stainless

2шт.

9

87267086

MOUNTING PLATE

Deutsch Retainer

4шт.

10

BN322875

MOUNTING PLATE

Rivit Retainer

4шт.

11

87029192

RIVET,Pop, 3/16" x 3/8", Stainless

4шт.

12

87696545

CONTACT HOUSING,Male, 3 Pole

3 Pin Connector For Stop Light

2шт.

13

222136A1

ELEC CONNECTOR,Male, 2 Pin

2 Pin Connector For Turn Light

2шт.
