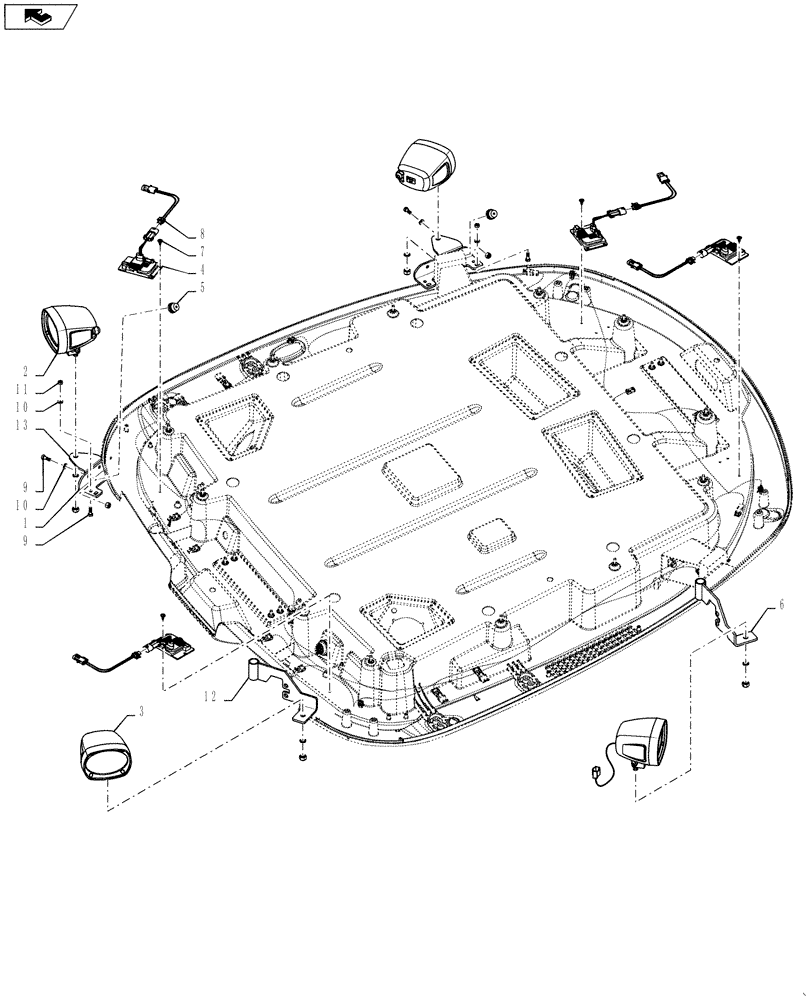

Запчасти Case IH 4430 (55.404.06) - CAB LIGHTS, DELUXE HID FIELD LIGHT OPTION (55) - ELECTRICAL SYSTEMS

1

84406221

SUPPORT

Rear HID Light

2шт.

2

87475202

LAMP

Trap, Rear HID

2шт.

See 55.404.13 For Service Parts

1шт.

3

87475205

LAMP,HID, 12V, 35W, Clear

Flood, Front HID

2шт.

See 55.404.13 For Service Parts

1шт.

4

87475204

BALLAST

HID Light

4шт.

5

182049A1

GROMMET

Roof

2шт.

6

84396156

MOUNT

LH Front Work Light

1шт.

7

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

12шт.

8

87475203

CABLE TERMINAL

Harness, Ballast to Roof Harness

4шт.

9

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

12шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

12

84396157

MOUNT

RH Front Work Light

1шт.

13

84406226

MOUNT

Rear HID Light

2шт.
