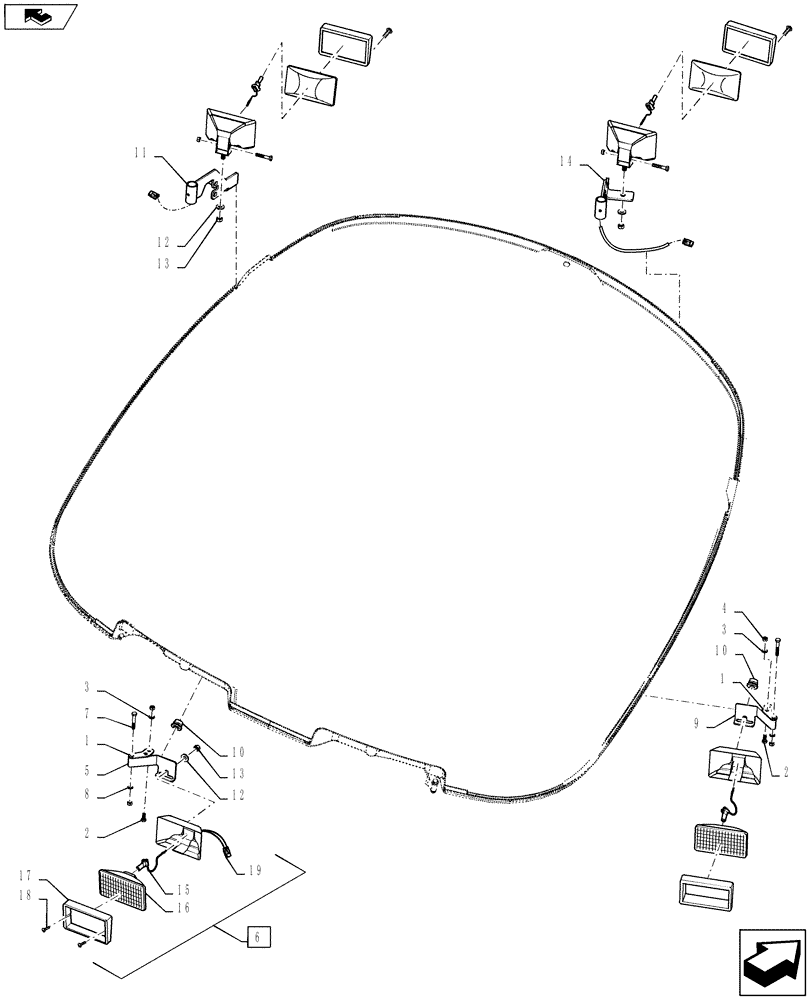

Запчасти Case IH 4430 (55.404.05) - CAB LIGHTS, HALOGEN, STANDARD (55) - ELECTRICAL SYSTEMS

1

84230997

BRACKET, SUPPORTING

Work Light, Rear

2шт.

2

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

5

84231001

BRACKET, SUPPORTING

LH Rear Work Light

1шт.

6

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Flood, 80 x 30, 55W, Includes Ref 15 - 19

4шт.

7

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

355532A1

WASHER

Nylon

4шт.

9

84231006

BRACKET, SUPPORTING

RH Rear Work Light

1шт.

10

182049A1

GROMMET

2шт.

11

84396156

MOUNT

LH Front Work Light

1шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

14

84396157

MOUNT

RH Front Work Light

1шт.

15

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

16

276498A1

LENS

1шт.

17

1964806C1

BEZEL

Flood Lamp

1шт.

18

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

19

245483C1

ELEC CONNECTOR,Male, 2 Pin

2 Pin

1шт.
