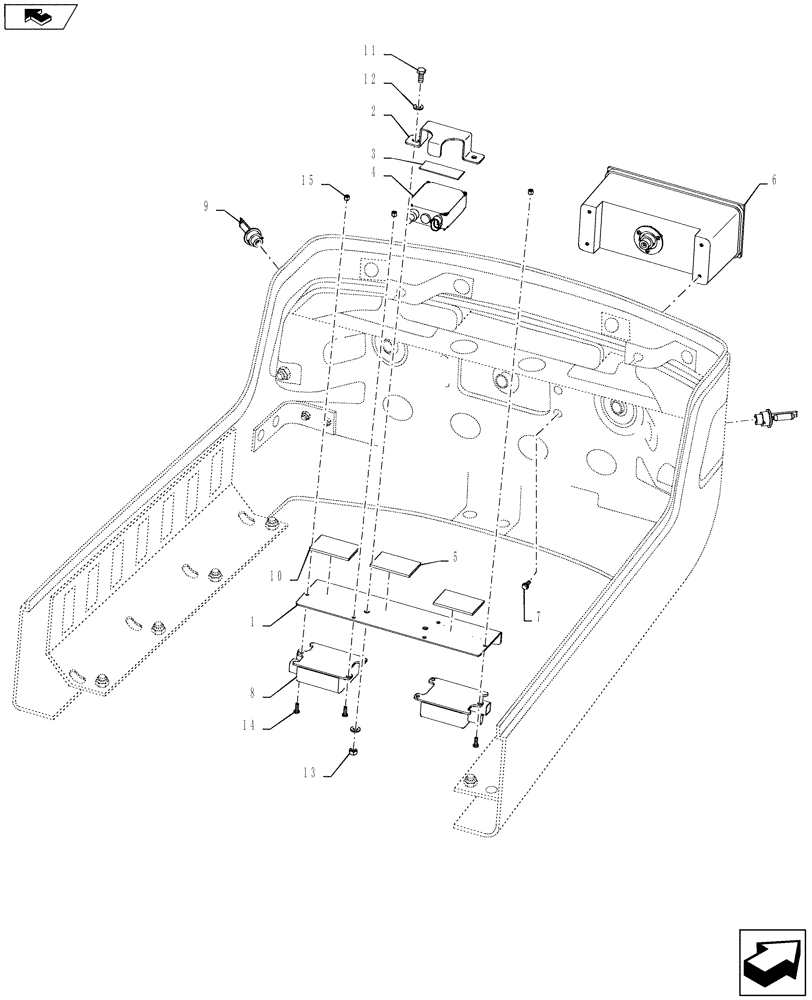

Запчасти Case IH 4430 (55.404.04) - CENTER HEADLIGHT, DELUXE HID FIELD LIGHT OPTION (55) - ELECTRICAL SYSTEMS

1

47541053

MOUNT

HID Ballast

1шт.

2

333645A1

CLAMP

HID Ballast Hold Down

1шт.

3

333644A1

GASKET

Upper Foam HID Ballast

1шт.

4

322332A1

BALLAST

Light, Center HID

1шт.

5

333643A1

GASKET

Lower Foam HID Ballast

1шт.

6

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center Headlight, HID - Includes Bulb (NSS due to cost)

1шт.

7

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

1/4"-20 x 3/4"

4шт.

8

47540429

BALLAST

HID, 35W/12V D2S/D2R

2шт.

9

47540431

BULB,HID

HID With Harness

2шт.

10

87646099

FASTENER

Dual Lock

4шт.

11

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

14

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

6шт.

15

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.
