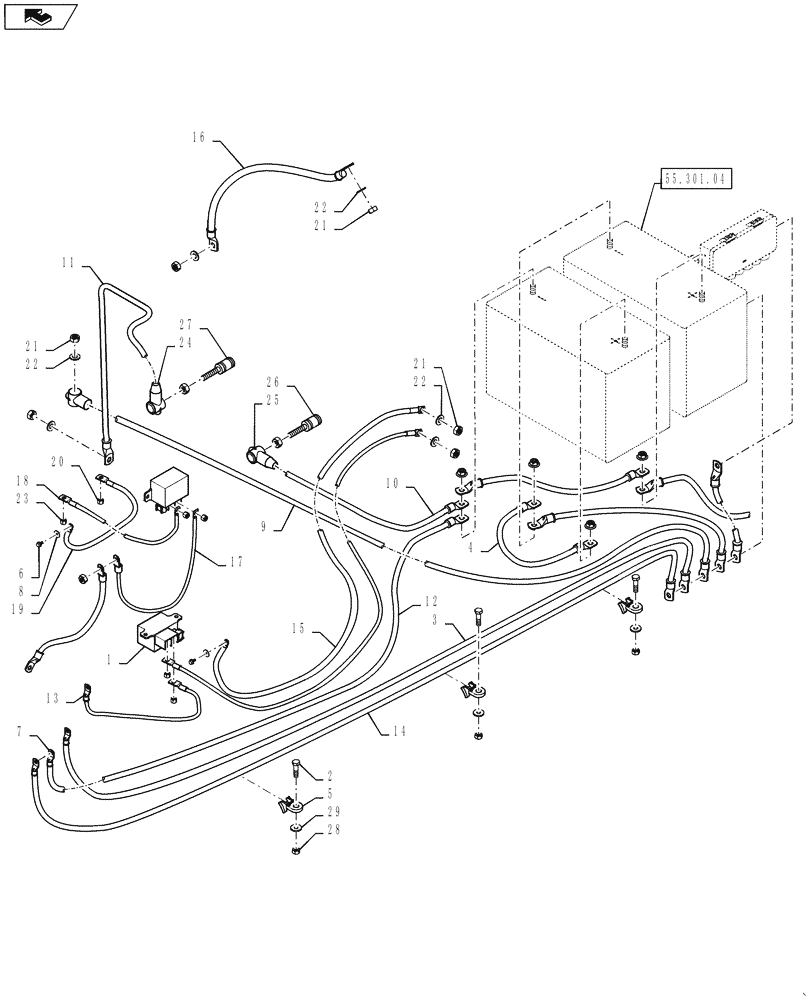

Запчасти Case IH 4430 (55.301.05) - BATTERY CABLES AND HOOKUPS (55) - ELECTRICAL SYSTEMS

1

86619908

RELAY,12V, 150A

Starter, And Grid Heater

2шт.

2

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

3

84399605

POS BATTERY CABLE

To Starter, 32, M12, M8, 775

1шт.

4

84538145

POS BATTERY CABLE

From Battery, 62, M12, M10, 1465

1шт.

5

84407295

BASE

M8, Stud

3шт.

6

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

7

84538110

NEG BATTERY CABLE

Disconnect To Starter, 62, M10, M10, 2055

1шт.

8

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

9

84513447

POS BATTERY CABLE

Fuse Holder To Cab, 32, M6, M13, 5510

1шт.

10

84363184

POS BATTERY CABLE

Battery To Jump Start, 50, M10, M10, M10, 2545

1шт.

11

84363170

NEG BATTERY CABLE

Frame Ground To Jump Start, 50, M10, M10, 645

1шт.

12

84363223

POS BATTERY CABLE

Fuse Holder To Relay, 13, M6, M6, 2025

1шт.

13

84538106

POS BATTERY CABLE

Relay To Starter, 13, M6, M8, 870

1шт.

14

84538114

NEG BATTERY CABLE

To Starter, 50, M10, M10, 2010

1шт.

15

84364986

NEG BATTERY CABLE

Frame To Engine, 50, M6, M10, 1645

1шт.

16

BN307097

CABLE

Cab Ground, 1/0, 15"

1шт.

17

86611286

ELECTRICAL WIRE

WIRE Harness Assembly, Relay To Grid Heater

1шт.

18

86611286

ELECTRICAL WIRE

WIRE Harness Assembly, To Alternator

1шт.

19

86611287

CABLE,490mm L

WIRE Harness Assembly, To Alternator

1шт.

20

832-10406

NUT,M6 x 1, Cl 8

5шт.

21

86500689

NUT,M10 x 1.5, Cl 10

6шт.

22

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

23

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

24

342463A1

BOOT

Battery, Black

1шт.

25

342119A1

BOOT

Battery, Red

2шт.

26

582785C91

TERMINAL CONNECTOR

Jump Start

1шт.

27

A187583

STUD

Jump Start

1шт.

28

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

29

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.
