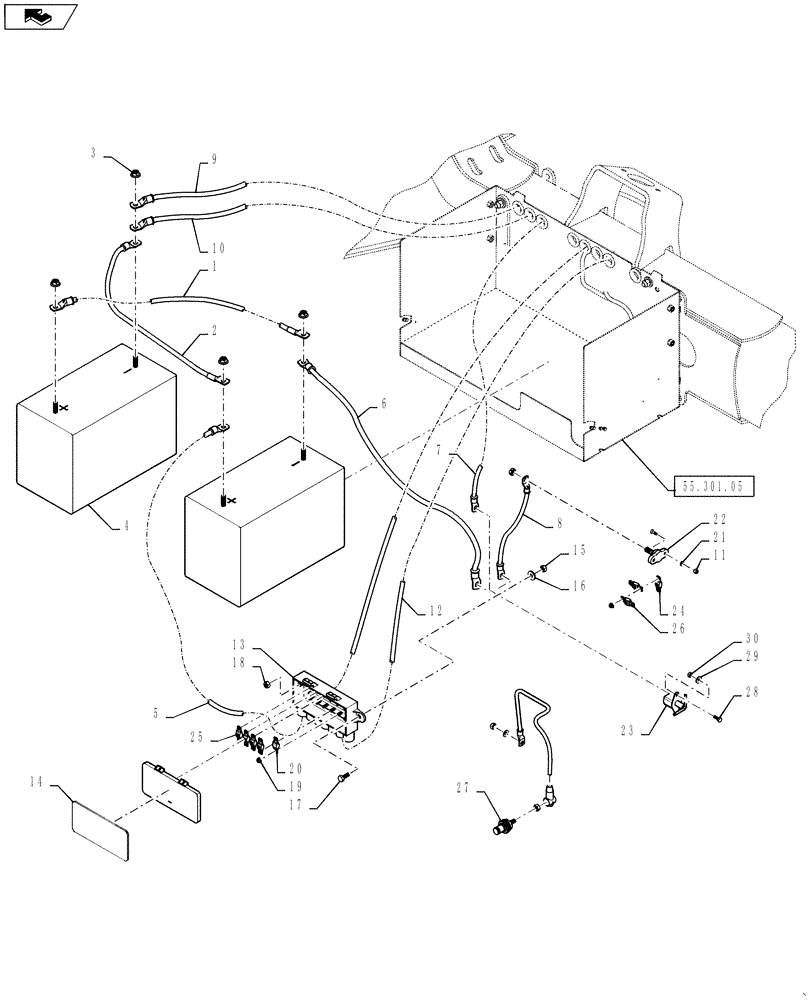

Запчасти Case IH 4430 (55.301.04) - BATTERY BOX WIRING AND DISCONNECT (55) - ELECTRICAL SYSTEMS

1

BN320001

CABLE

Positive, Battery To Battery

1шт.

2

BN320002

NEG BATTERY CABLE

Battery To Battery

1шт.

3

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

4

BMF31GSW

WET BATTERY

12V, 950 CCA, Group 31, Wet

2шт.

CCMF31GSW

WET BATTERY

12V, 950 CCA, Group 31, Canada

2шт.

5

84498313

POS BATTERY CABLE

Battery Pos To Fuse, 32, M10, M10, 650

1шт.

6

84363187

NEG BATTERY CABLE

Neg Battery To Disconnect Switch, 62, M10, M10, 370

1шт.

7

84538110

NEG BATTERY CABLE

Disconnect Switch To Starter, 62, M10, M10, 2055

1шт.

8

84363188

NEG BATTERY CABLE

32, M10, M10, 240

1шт.

9

84538145

POS BATTERY CABLE

62, M12, M10, 1465

1шт.

10

84363184

POS BATTERY CABLE

Battery To Jump Start, 50, M10, M10, 2545

1шт.

11

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

12

84363223

POS BATTERY CABLE

Fuse To Relay, 13, M6, M6, 2025

1шт.

13

84206083

FUSE BOX

6 Way

1шт.

14

84371137

DECAL

Power Distribution

1шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

17

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

19

86507064

FLANGE NUT,M5 x 0.8

M5, Flange

11шт.

20

87548130

FUSE,60A, Midival

1шт.

21

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

5.6 X 10 X 1MM CST, DOR

2шт.

22

20-1451T1

BLOCK

Junction

1шт.

23

84004375

BATTERY CUT-OUT

Battery Disconnect

1шт.

24

84078783

FUSE,80A, Midival

80A

2шт.

25

84330274

FUSE,125A

125A

2шт.

26

84174070

FUSE,30A, Orange

30A

3шт.

27

A187583

STUD

Jump Start, Negative

1шт.

28

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

29

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

30

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.
