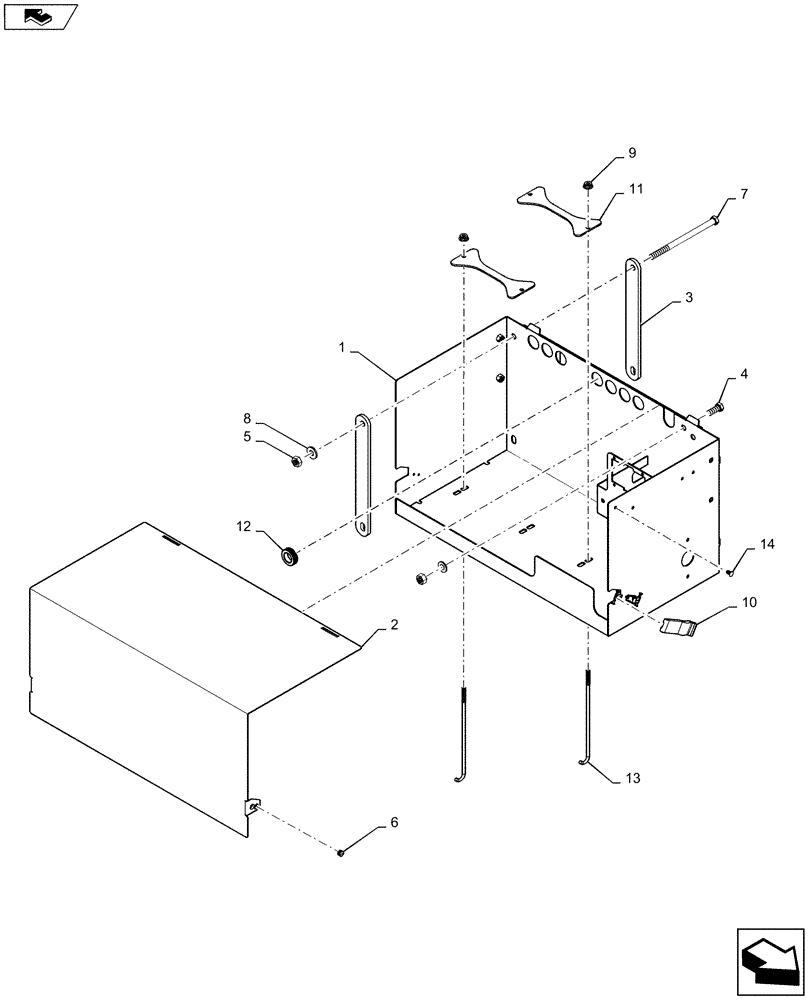

Запчасти Case IH 4430 (55.301.03) - BATTERY BOX (55) - ELECTRICAL SYSTEMS

1

84343729

BATTERY BOX

Painted

1шт.

2

84343732

COVER

Battery Box, Painted

1шт.

3

84344603

MOUNT

Battery Box Painted

2шт.

4

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

6

87017053

RIVET,Pop, .146" x .425"

Used On Ref. 10, and Ref. 2

8шт.

7

87341826

BOLT,Hex, M12 x 200mm, Cl 8.8

M12 X 200

2шт.

8

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

28 X 4

4шт.

9

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

10

BN307683

LATCH

Soft W / Conceal

2шт.

11

BN320331

BRACKET

Battery Mount

2шт.

12

BN2290753

GROMMET

7/8" Hole

8шт.

13

87691876

ROD

Battery Hold Down

4шт.

14

87529297

CLIP

Christmas Tree, 8.8 mm Hole

2шт.

0

BMF31GS

DRY BATTERY

NA, 12V, 950 CCA, Group 31

1шт.

0

BMF31GSW

WET BATTERY

Canada, 12V 950 CCA, Group 31

1шт.
