(55.100.51) - AUXILIARY POWER HARNESS

Запчасти Case IH 4430 (55.100.51) - AUXILIARY POWER HARNESS (55) - ELECTRICAL SYSTEMS

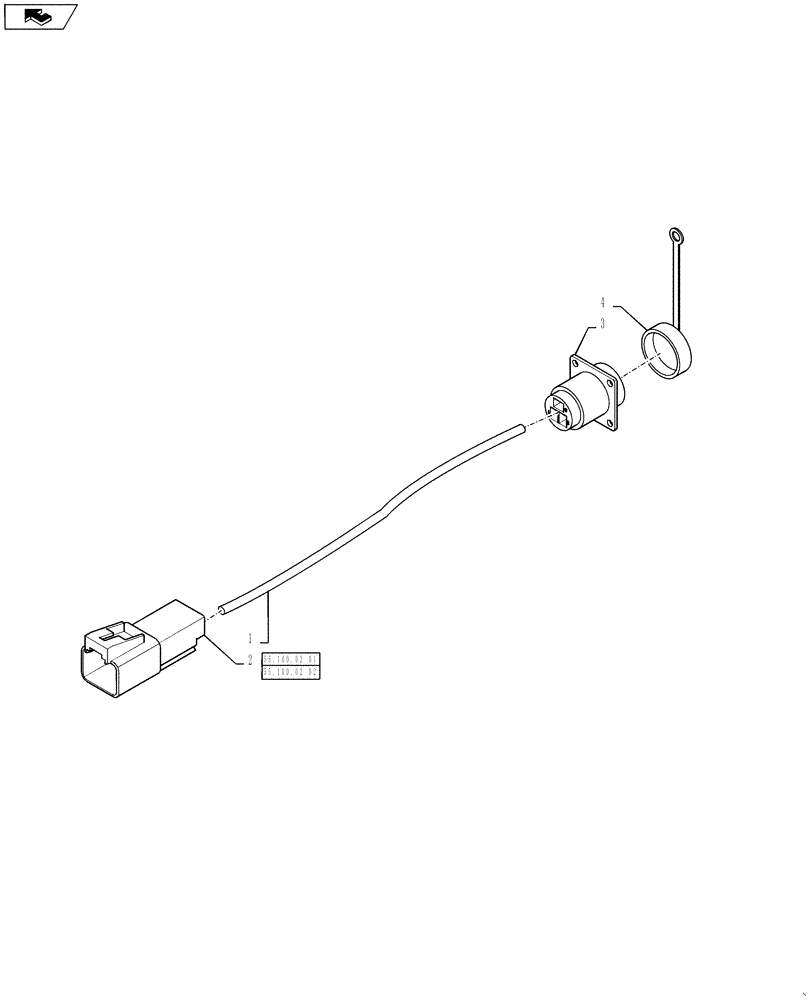

Схема запчастей Case IH 4430 - (55.100.51) - AUXILIARY POWER HARNESS (55) - ELECTRICAL SYSTEMS
2
1
3
4
55.100.02 01
55.100.02 02
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

227739A2

POWER SOCKET

Harness, Auxiliary Power, Inc. 2 - 4

1шт.

2

227729A1

CONNECTOR, ELEC

CONNECTOR To Main Cab Harness

1шт.

227731A1

CONNECTOR, ELEC

CONNECTOR Secondary Lock

1шт.

3

225164C1

ELEC CONNECTOR

Implement Aux Power

1шт.

4

225162C1

PLUG

Dust Cap

1шт.
