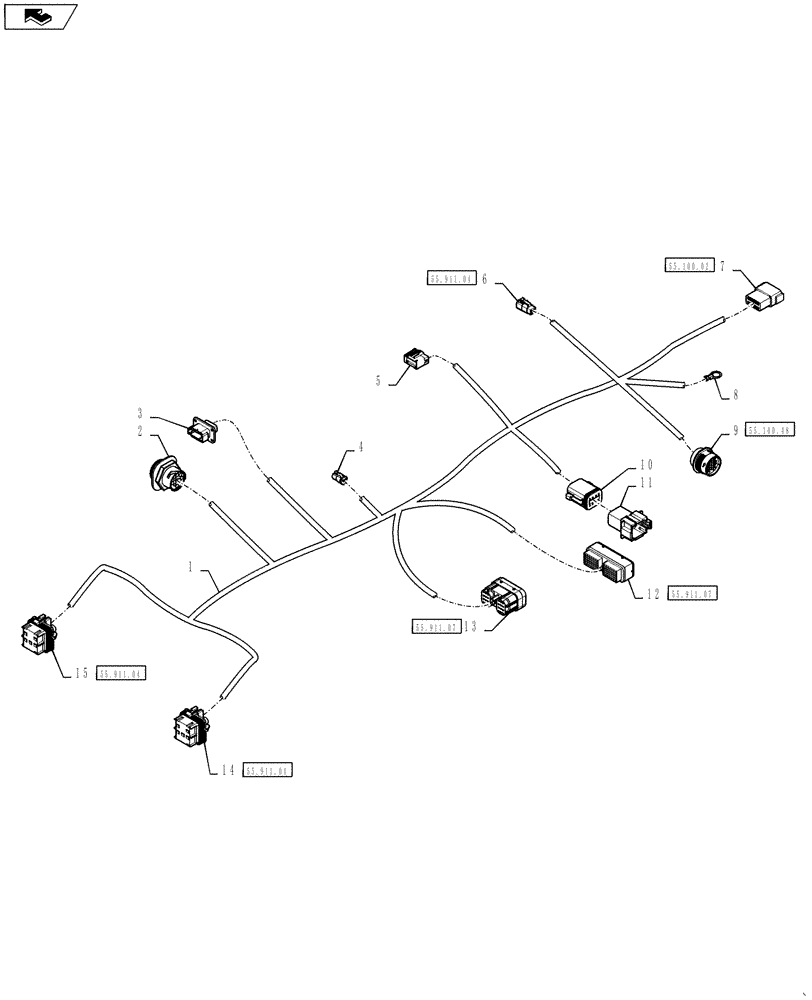

Запчасти Case IH 4430 (55.100.47[01]) - AUTOGUIDANCE HARNESS, CAB, BSN YCT032413 (55) - ELECTRICAL SYSTEMS

1

84161533

WIRE HARNESS

Cab Autoguidance

1шт.

2

87736919

CONTACT HOUSING,Female, 9 Pole

Service Port, C706M

1шт.

87737472

JAM NUT,Hex, M35 x 1

Hex, Service Port, C706M

1шт.

87737474

LID

Cover, Service Port, C706M

1шт.

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Service Port, C706M

2шт.

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Service Port, C706M

2шт.

3

84146421

ELEC CONNECTOR

Navigation Diagnostic, C707M

1шт.

87705201

WEDGE

Lock, Navigation Diagnostic, C707M

1шт.

87697946

CONNECTOR, ELEC

CONNECTOR Terminal, Navigation Diagnostic, C707M

3шт.

4

87695580

ELEC CONNECTOR,Female, 3 Pole

Terminator, C712F

1шт.

381415A1

CONNECTOR, ELEC

CONNECTOR Wedge Lock, Terminator, C712F

1шт.

225365C1

SOCKET

Terminal, Terminator, C712F

2шт.

5

87693718

ELEC CONNECTOR

Splice, C709F

1шт.

87693741

CAP

1шт.

225365C1

SOCKET

Terminal, Splice, C709F

2шт.

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

Splice, C709F

2шт.

6

277904A1

ELEC CONNECTOR,Female, 4 Pin

Remote Engage, C708F

1шт.

279794A1

STOP LOCK,Locking, Orange

Wedge, Remote Engage, C708F

1шт.

225039C1

TERMINAL

Remote Engage, C708F

3шт.

7

225401C1

CONNECTOR, ELEC

CONNECTOR Autoguidance Interface, C047M

1шт.

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Lock, Autoguidance Interface, C047M

1шт.

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Autoguidance Interface, C047M

5шт.

8

84279551

ELEC CONNECTOR,1.00 - 2.50mm

Chassis Ground, G1-AG

1шт.

9

381149A1

CONNECTOR, ELEC

CONNECTOR Autoguidance Bulkhead, CM07M

1шт.

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Autoguidance Bulkhead, CM07M

7шт.

10

87587627

CONTACT HOUSING

Splice, C710M

1шт.

11

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Splice, C710F

1шт.

225321C1

WEDGE

CONNECTOR Wedge Lock, Splice, C710F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, C710F

7шт.

12

198459A1

CONNECTOR, ELEC

CONNECTOR Nav 1, C700F

1шт.

87697946

CONNECTOR, ELEC

CONNECTOR Terminal, Nav 1, C700F

1шт.

225365C1

SOCKET

Terminal, Nav 1, C700F

2шт.

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Terminal, Nav 1, C700F

17шт.

13

244615A1

CONNECTOR, ELEC

CONNECTOR Nav 2, C701F

1шт.

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Terminal, Nav 2, C701F

5шт.

14

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Relay, RH Steering, C705F

1шт.

321836A1

ELEC CONNECTOR

Secondary Lock, RH Steering, C705F

1шт.

87680656

CONTACT

Terminal, Relay, RH Steering, C705F

4шт.

15

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Relay, LH Steering, C705F

1шт.

321836A1

ELEC CONNECTOR

Secondary Lock, LH Steering, C705F

1шт.

87680656

CONTACT

Terminal, Relay, LH Steering, C705F

4шт.
