(55.100.46) - MONITOR READY DISPLAY HARNESS

Запчасти Case IH 4430 (55.100.46) - MONITOR READY DISPLAY HARNESS (55) - ELECTRICAL SYSTEMS

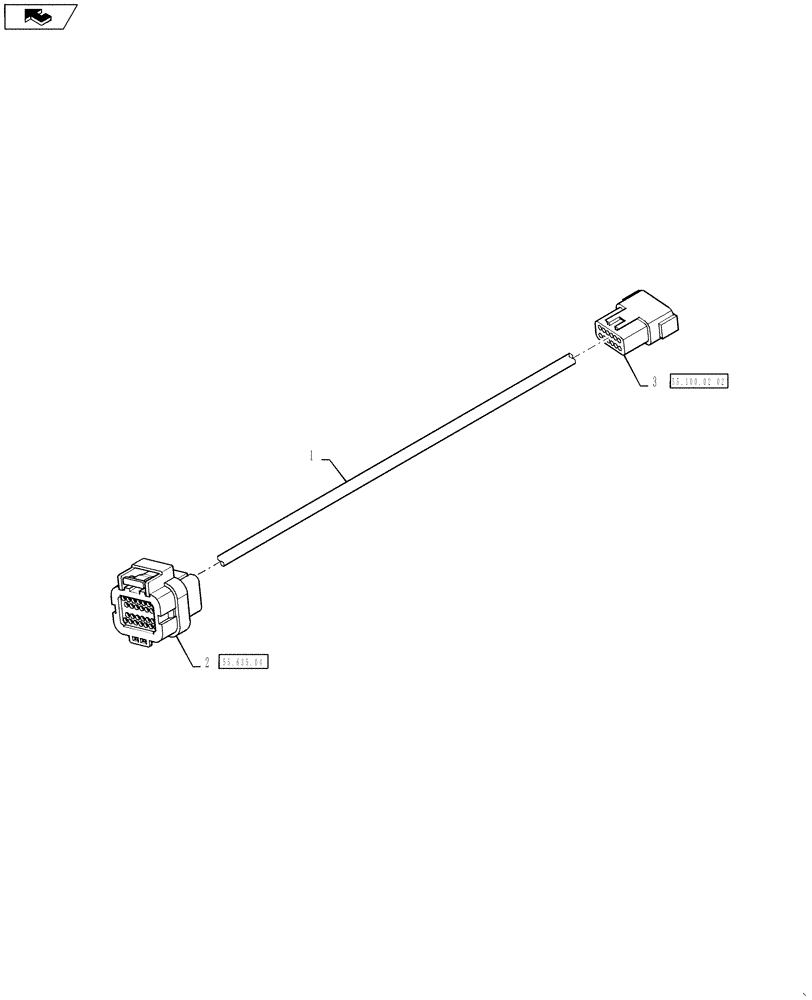

Схема запчастей Case IH 4430 - (55.100.46) - MONITOR READY DISPLAY HARNESS (55) - ELECTRICAL SYSTEMS
1
3
home
55.100.02 02
55.635.04
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87714577

HARNESS

Monitor Ready Display

1шт.

2

87410948

CONTACT HOUSING,Female, 26 Pole

To Display, C600

1шт.

3

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

To Cab Harness, C602F

1шт.

87705201

WEDGE

To Cab Harness, C602F

1шт.

223951A1

PIN

To Cab Harness, C602F

9шт.

84807680

PLUG

To Cab Harness, C602F

3шт.

Выбрано товаров: 6
