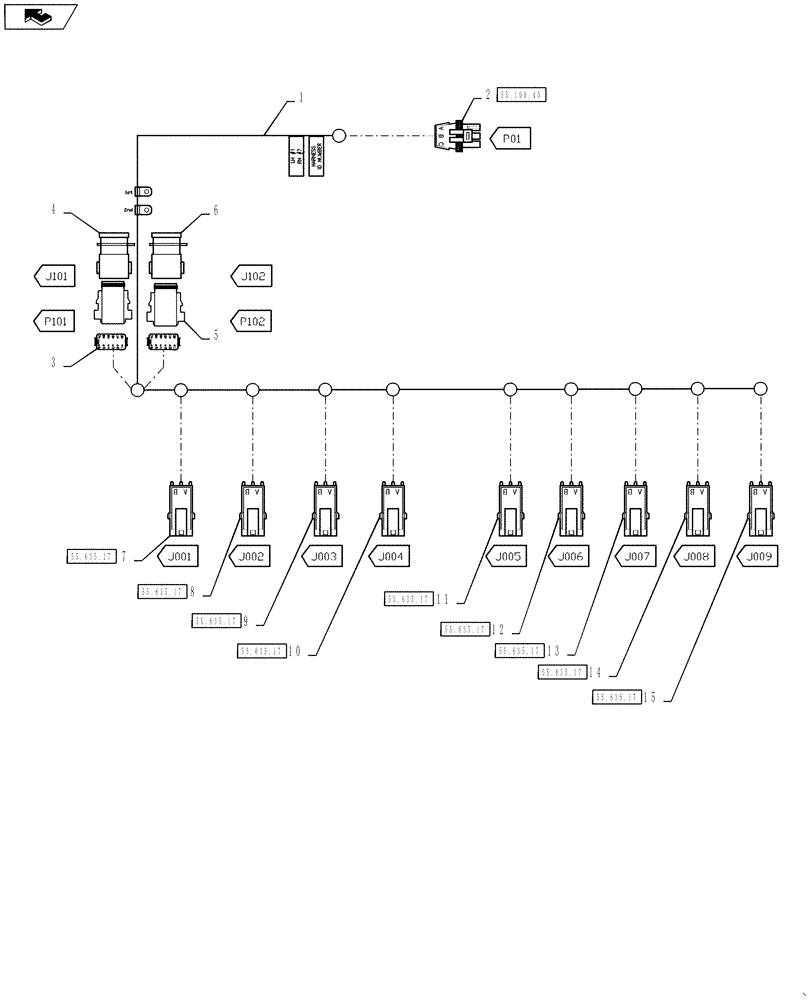

Запчасти Case IH 4430 (55.100.44) - AIM COMMAND HARNESS, 7 SECTION, 120 BOOM, OUTER SECTION, 9 NOZZLES (55) - ELECTRICAL SYSTEMS

1

87627642

HARNESS

Aim Command Harness, Section 1 And 7, Outer Section, 120' Boom

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

Aim Command Central Harness, P01

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Aim Command Central Harness, P01

3шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Aim Command Central Harness, P01

1шт.

3

225389C1

CONNECTOR, ELEC

CONNECTOR Splice Pack, P101

1шт.

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P101

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P101

12шт.

4

87381540

ELEC CONNECTOR

Splice Pack 2 x 6 Way, J101

1шт.

5

225389C1

CONNECTOR, ELEC

CONNECTOR Splice Pack, P102

1шт.

87695651

LOCKING TAB,Wedge Lock

Splice Pack, P102

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, P102

12шт.

6

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, J102

1шт.

7

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J001

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J001

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J001

2шт.

8

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J002

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J002

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J002

2шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J003

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J003

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J003

2шт.

10

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J004

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J004

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J004

2шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J005

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J005

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J005

2шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J006

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J006

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J006

2шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J007

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J007

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J007

2шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J008

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J008

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J008

2шт.

15

245483C1

ELEC CONNECTOR,Male, 2 Pin

Nozzle Solenoid Connector, J009

1шт.

225119C1

TERMINAL

Nozzle Solenoid Connector, J009

2шт.

225124C1

SEAL,2 - 2.9 mm2

Nozzle Solenoid Connector, J009

2шт.
