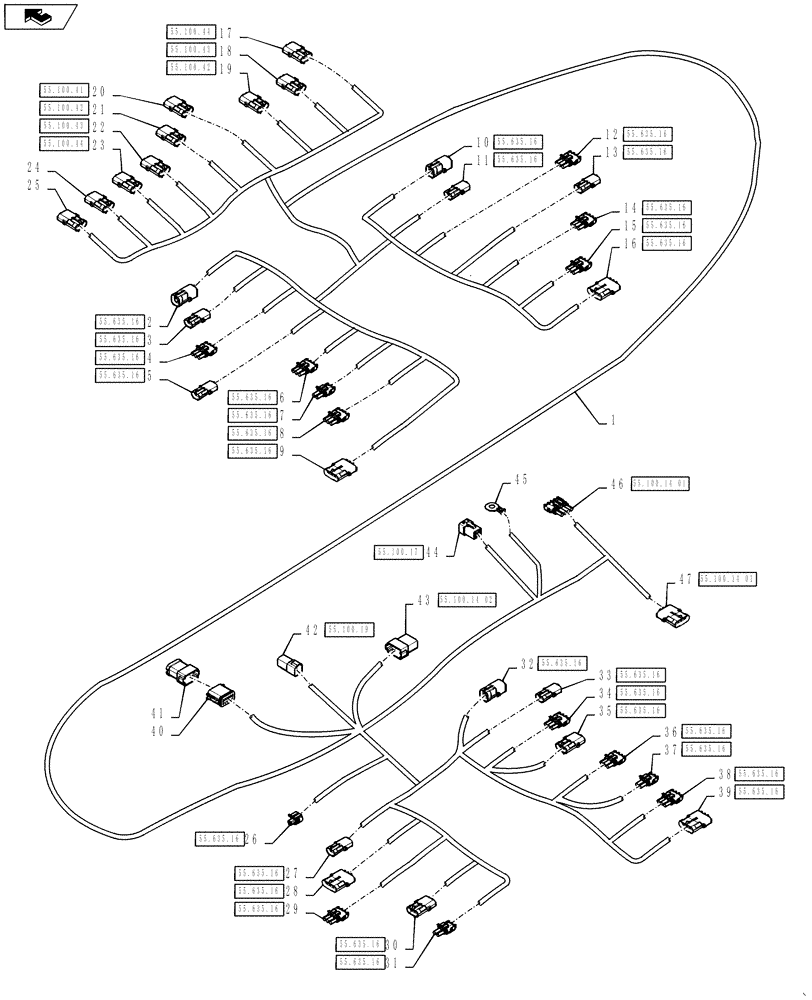

Запчасти Case IH 4430 (55.100.40) - REAR AIM COMMAND HARNESS, CENTER SECTION, 120 BOOM (55) - ELECTRICAL SYSTEMS

1

84297602

HARNESS

Aim Command Main Frame Harness, 7 Section, 120' Boom

1шт.

2

245716C1

ELEC CONNECTOR,Male, 4 Pin

Power, C927M

1шт.

225119C1

TERMINAL

Power, C927M

4шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Aim Command Manual, C923M

1шт.

225119C1

TERMINAL

Aim Command Manual, C923M

2шт.

4

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #4, C928F

1шт.

1964742C1

PIN

Terminal, Section #4, C928F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #4, C928F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #4, C928F

2шт.

5

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Slave In, C924M

1шт.

225119C1

TERMINAL

Slave In, C924M

2шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #5, C929F

1шт.

1964742C1

PIN

Terminal, Section #5, C929F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #5, C929F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #5, C929F

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

Slave Out, C925F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Slave Out, C925F

2шт.

8

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #4, Section #6, C930F

1шт.

1964742C1

PIN

Terminal, Section #4, Section #6, C930F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #4, Section #6, C930F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #6, C930F

2шт.

9

245487C1

ELEC CONNECTOR,Male, 4 Pin

Shutoff, C926M

1шт.

225127C1

PLUG

Shutoff, C926M

1шт.

225119C1

TERMINAL

Shutoff, C926M

3шт.

10

245716C1

ELEC CONNECTOR,Male, 4 Pin

Power, C919M

1шт.

225119C1

TERMINAL

Power, C919M

4шт.

11

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Aim Command Manual, C915M

1шт.

225119C1

TERMINAL

Aim Command Manual, C915M

2шт.

12

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #7, C920F

1шт.

1964742C1

PIN

Terminal, Section #7, C920F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #7, C920F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #7, C920F

2шт.

13

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Slave In, C916M

1шт.

225119C1

TERMINAL

Slave In, C916M

2шт.

14

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #8, C921F

1шт.

1964742C1

PIN

Terminal, Section #8, C921F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #8, C921F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #8, C921F

2шт.

15

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #9, C922F

1шт.

1964742C1

PIN

Terminal, Section #9, C922F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #9, C922F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #9, C922F

2шт.

16

245487C1

ELEC CONNECTOR,Male, 4 Pin

Shutoff, C918M

1шт.

225127C1

PLUG

Shutoff, C918M

1шт.

225119C1

TERMINAL

Shutoff, C918M

3шт.

17

87692858

ELEC CONNECTOR,Male

Section #1, C931M

1шт.

225119C1

TERMINAL

Section #1, C931M

3шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #1, C931M

1шт.

18

87692858

ELEC CONNECTOR,Male

Section #2, C932M

1шт.

225119C1

TERMINAL

Section #2, C932M

3шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #2, C932M

1шт.

19

87692858

ELEC CONNECTOR,Male

Section #3, C933M

1шт.

225119C1

TERMINAL

Section #3, C933M

3шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #3, C933M

1шт.

20

87692858

ELEC CONNECTOR,Male

Section #4, C934M

1шт.

225119C1

TERMINAL

Section #4, C934M

3шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #4, C934M

1шт.

21

87692858

ELEC CONNECTOR,Male

Section #5, C935M

1шт.

225119C1

TERMINAL

Section #5, C935M

3шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #5, C935M

1шт.

22

87692858

ELEC CONNECTOR,Male

Section #6, C936M

1шт.

225119C1

TERMINAL

Section #6, C936M

3шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #6, C936M

1шт.

23

87692858

ELEC CONNECTOR,Male

Section #7, C937M

1шт.

225119C1

TERMINAL

Section #7, C937M

3шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #7, C937M

1шт.

24

87692858

ELEC CONNECTOR,Male

Section #8, C938M

1шт.

225127C1

PLUG

Seal, Section #8, C938M

3шт.

87644909

WIRE CONNECTOR,Female, 3 Pins

Terminal, Section #8, C938M

1шт.

25

87692858

ELEC CONNECTOR,Male

Section #9, C939M

1шт.

225127C1

PLUG

Seal, Section #9, C939M

3шт.

87644909

WIRE CONNECTOR,Female, 3 Pins

Terminal, Section #9, C939M

1шт.

26

84078681

WIRE CONNECTOR,Female

Aim Command PSI Sensor, C900F

1шт.

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Terminal, Aim Command PSI Sensor, C900F

3шт.

27

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Aim Command Manual, C911F

1шт.

225119C1

TERMINAL

Aim Command Manual, C911F

2шт.

28

245487C1

ELEC CONNECTOR,Male, 4 Pin

Control, C910M

1шт.

225127C1

PLUG

Control, C910M

1шт.

225119C1

TERMINAL

Control, C910M

3шт.

29

87644909

WIRE CONNECTOR,Female, 3 Pins

Feedback, C913F

1шт.

225127C1

PLUG

Feedback, C913F

2шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Feedback, C913F

1шт.

30

87692858

ELEC CONNECTOR,Male

PSI Sensor, C912M

1шт.

225119C1

TERMINAL

PSI Sensor, C912M

3шт.

31

87692855

CONTACT HOUSING,Male, 2 Cavities

Output, C909F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Output, C909F

2шт.

32

245716C1

ELEC CONNECTOR,Male, 4 Pin

Power, C905M

1шт.

225119C1

TERMINAL

Power, C905M

4шт.

33

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Aim Command Manual, C901M

1шт.

225119C1

TERMINAL

Aim Command Manual, C901M

2шт.

34

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #1, C906F

1шт.

1964742C1

PIN

Terminal, Section #1, C906F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #1, C906F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #1, C906F

2шт.

35

87692858

ELEC CONNECTOR,Male

Servo, C902M

1шт.

225127C1

PLUG

Servo, C902M

1шт.

225119C1

TERMINAL

Servo, C902M

2шт.

36

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #2, C907F

1шт.

1964742C1

PIN

Terminal, Section #2, C907F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #2, C907F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #2, C907F

2шт.

37

87692855

CONTACT HOUSING,Male, 2 Cavities

Slave Out, C903F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Slave Out, C903F

2шт.

38

87644909

WIRE CONNECTOR,Female, 3 Pins

Section #3, C908F

1шт.

1964742C1

PIN

Terminal, Section #3, C908F

1шт.

225126C1

CONNECTOR, ELEC

CONNECTOR Seal, Section #1, Section #3, C908F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Section #3, C908F

2шт.

39

245487C1

ELEC CONNECTOR,Male, 4 Pin

Shutoff, C904M

1шт.

225127C1

PLUG

Shutoff, C904M

1шт.

225119C1

TERMINAL

Shutoff, C904M

3шт.

40

87695592

CONTACT HOUSING,Female, 12 Pole

12 Way Splice, C914F

1шт.

87695651

LOCKING TAB,Wedge Lock

12 Way Splice, C914F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

12 Way Splice, C914F

12шт.

41

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, C914M

1шт.

42

87694152

CONTACT HOUSING,Male, 6 Pole

Hydraulic Harness Interface, C422M

1шт.

84068583

PLUG,12 - 16 Ga, White

Hydraulic Harness Interface, C422M

1шт.

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Hydraulic Harness Interface, C422M

5шт.

43

87695724

ELEC CONNECTOR,Male, 12 Pole

Product Harness Interface, C522M

1шт.

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Product Harness Interface, C522M

1шт.

84068583

PLUG,12 - 16 Ga, White

Product Harness Interface, C522M

3шт.

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Product Harness Interface, C522M

9шт.

44

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Aim Command Power, C940M

1шт.

87707798

WEDGE

Aim Command Power, C940M

1шт.

84068583

PLUG,12 - 16 Ga, White

Aim Command Power, C940M

1шт.

87704524

ELEC CONNECTOR,Pin, Size 12

Terminal, Aim Command Power, C940M

3шт.

45

1964718C1

TERMINAL CONNECTOR

Chassis Ground, G1-AM

1шт.

46

245486C1

ELEC CONNECTOR,4 Pin

Remote Out, C520FA

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Remote Out, C520FA

4шт.

47

245487C1

ELEC CONNECTOR,Male, 4 Pin

Remote In, C517MA

1шт.

225119C1

TERMINAL

Remote In, C517MA

4шт.
