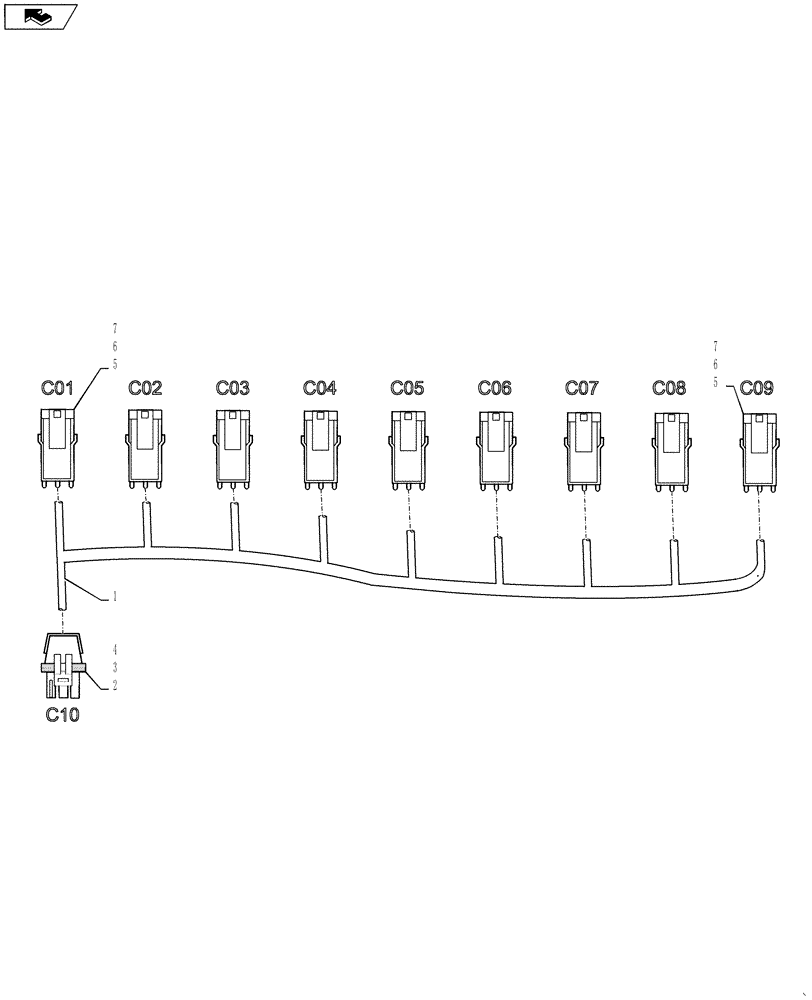

Запчасти Case IH 4430 (55.100.37) - AIM COMMAND HARNESS, 6 SECTION, 90"/100 BOOM, INNER SECTION, 9 NOZZLES (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
BN323119
WIRE HARNESS
Aim Command, 6 Section, 90'/100' Boom, Inner Sections, 9 Nozzle
1шт.
2
245484C1
ELEC CONNECTOR,3 Pin
Aim Command Central Harness, P10
1шт.
225122C1
TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm
Aim Command Central Harness, P10
3шт.
225126C1
CONNECTOR, ELEC
CONNECTOR Seal, Aim Command Central Harness, P10
1шт.
3
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J01
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J01
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J01
2шт.
4
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J02
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J02
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J02
2шт.
5
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J03
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J03
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J03
2шт.
6
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J04
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J04
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J04
2шт.
7
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J05
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J05
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J05
2шт.
8
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J06
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J06
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J06
2шт.
9
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J07
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J07
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J07
2шт.
10
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J08
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J08
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J08
2шт.
11
245483C1
ELEC CONNECTOR,Male, 2 Pin
Nozzle Solenoid Connector, J09
1шт.
225119C1
TERMINAL
Nozzle Solenoid Connector, J09
2шт.
225124C1
SEAL,2 - 2.9 mm2
Nozzle Solenoid Connector, J09
2шт.
Выбрано товаров: 31
