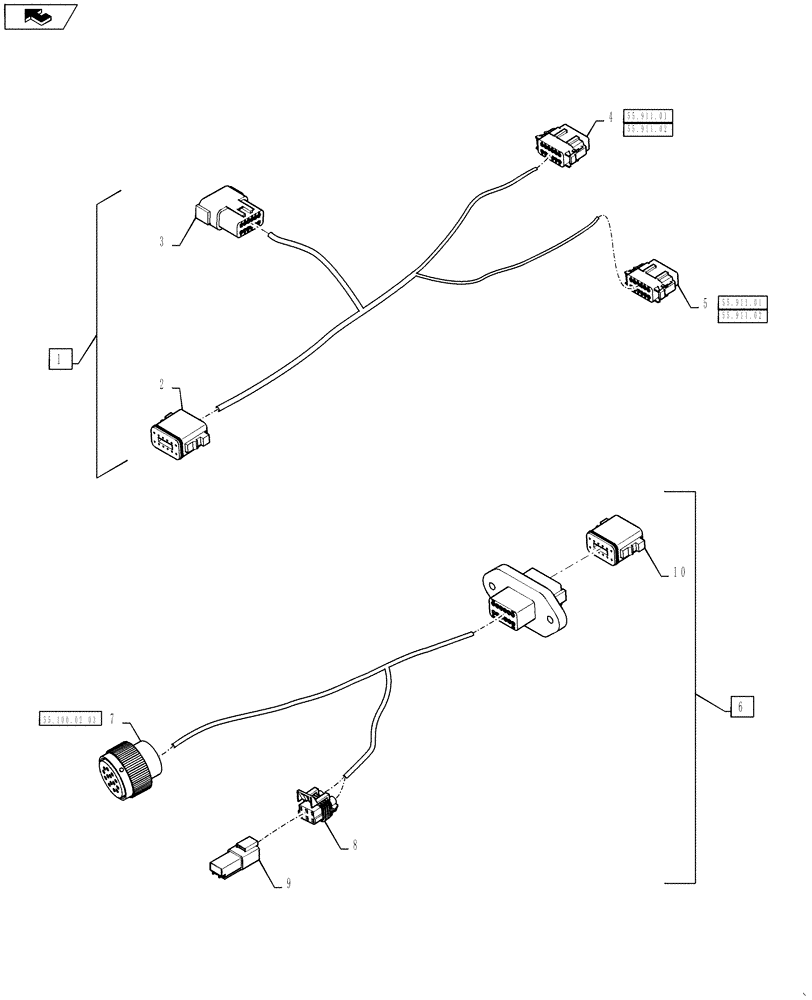

Запчасти Case IH 4430 (55.100.30) - GPS ANTENNA CAB ROOF HARNESS (55) - ELECTRICAL SYSTEMS

1

84258905

HARNESS

Antenna Cab Roof, Includes items 2 thru 4

1шт.

2

225389C1

CONNECTOR, ELEC

CONNECTOR Antenna Sub Roof Harness, C442M

1шт.

3

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

RTK Raio Antenna, C430F

1шт.

4

223671A1

CONTACT HOUSING,Female, 12 Pin

GPS Antenna Port B, C432M

1шт.

5

223671A1

CONTACT HOUSING,Female, 12 Pin

GPS Antenna Port A, C431M

1шт.

6

84258907

HARNESS

Antenna Sub Roof, Includes items 6 thru 10

1шт.

7

84178654

ELEC CONNECTOR

Cab Harness, C014M

1шт.

8

256348A1

ELEC CONNECTOR,Female, 6 Pin

Active Terminator, C433M

1шт.

9

87601142

ELEC CONNECTOR,Female, 6 Cavities

Active Terminator, RES443F

1шт.

10

323464A1

CONNECTOR, ELEC

CONNECTOR Antenna Cab Roof Harness, C442

1шт.
