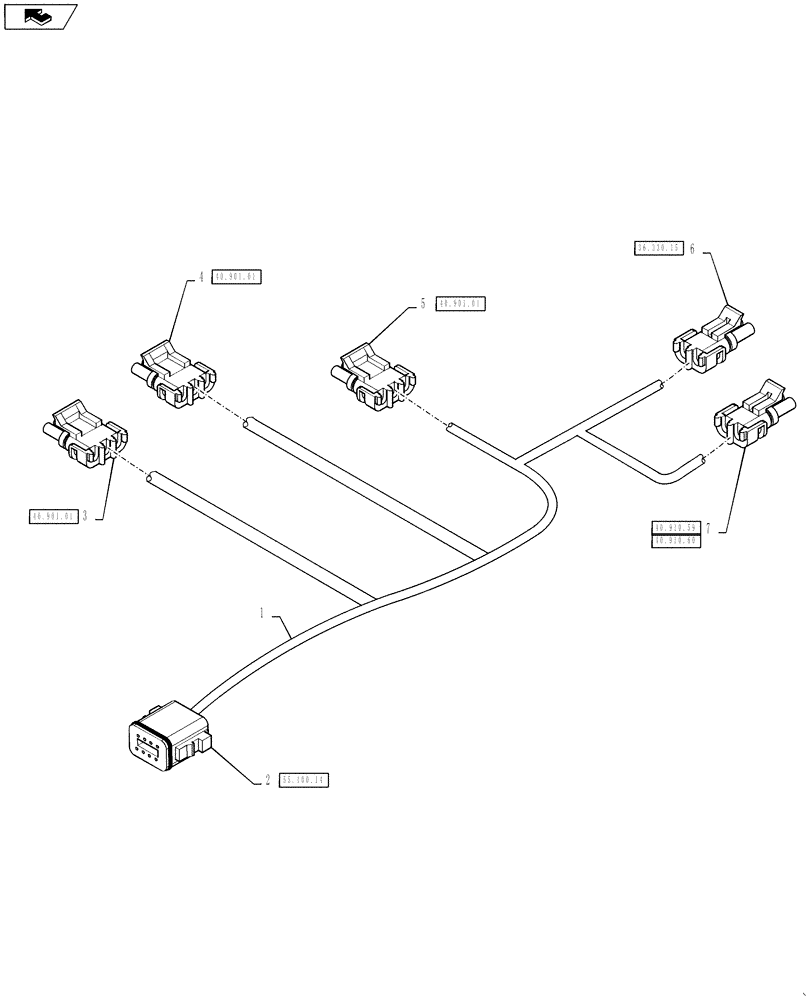

Запчасти Case IH 4430 (55.100.22) - 5 SECTION LH BOOM HARNESS (55) - ELECTRICAL SYSTEMS

1

343957A1

HARNESS

5 Section LH Boom Valve Control Harness

1шт.

2

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Product Harness Interface, C509F

1шт.

225321C1

WEDGE

CONNECTOR Wedge, Product Harness Interface, C509F

1шт.

225241C1

SOCKET

Terminal, Product Harness Interface, C509F

8шт.

3

245484C1

ELEC CONNECTOR,3 Pin

Inner Valve, J560

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Inner Valve, J560

3шт.

225124C1

SEAL,2 - 2.9 mm2

Inner Valve, J560

3шт.

4

245484C1

ELEC CONNECTOR,3 Pin

Middle Valve, J561

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Middle Valve, J561

3шт.

225124C1

SEAL,2 - 2.9 mm2

Middle Valve, J561

3шт.

5

245484C1

ELEC CONNECTOR,3 Pin

Outer Valve, J562

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Outer Valve, J562

3шт.

225124C1

SEAL,2 - 2.9 mm2

Outer Valve, J562

3шт.

6

245482C1

ELEC CONNECTOR,2 Pin

Air Foam Solenoid, P563

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Air Foam Solenoid, P563

2шт.

BN16174

DIODE,600V, 3A

3A, 600V, Air Foam Solenoid, P563

1шт.

7

245482C1

ELEC CONNECTOR,2 Pin

Fence Row Solenoid, P564

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Fence Row Solenoid, P564

2шт.

BN16174

DIODE,600V, 3A

3A, 600V, Fence Row Solenoid, P564

1шт.
