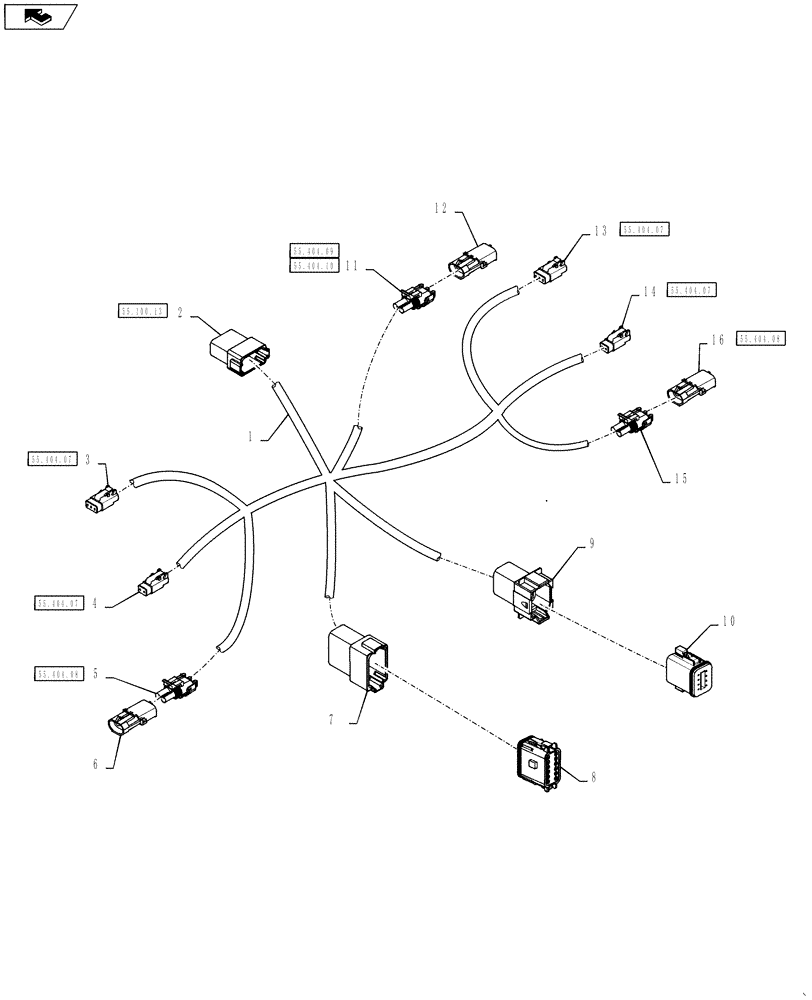

Запчасти Case IH 4430 (55.100.20) - REAR LIGHT HARNESS (55) - ELECTRICAL SYSTEMS

1

84281618

HARNESS

Rear Lights

1шт.

2

87695724

ELEC CONNECTOR,Male, 12 Pole

Rear Light Interface, C606M

1шт.

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Rear Light Interface, C606M

1шт.

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Terminal, Rear Light Interface, C606M

6шт.

84068583

PLUG,12 - 16 Ga, White

Rear Light Interface, C606M

6шт.

3

87696551

CONTACT HOUSING,Female, 3 Pole

LH Stop/Tail, C654F1

1шт.

87705586

WEDGE

LH Stop/Tail, C654F1

1шт.

225039C1

TERMINAL

Terminal, LH Stop/Tail, C654F1

3шт.

4

87696093

ELEC CONNECTOR,Female, 2 Cavities

LH Turn/Flash, C650F1

1шт.

222846A1

STOP LOCK

LH Turn/Flash, C650F1

1шт.

225039C1

TERMINAL

Terminal, LH Turn/Flash, C650F1

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Turn, C652F1

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

LH Turn, C652F1

2шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap For P650, C652M1

1шт.

225127C1

PLUG

Cap For P650, C652M1

2шт.

7

87696075

ELEC CONNECTOR

Splice Pack, C656F1

1шт.

87695651

LOCKING TAB,Wedge Lock

Splice Pack, C656F1

1шт.

381418A1

SOCKET

Terminal, Splice Pack, C656F1

7шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, C656F1

5шт.

8

87587629

ELEC CONNECTOR

4 x 3 Way Splice Pack, C656M1

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Splice Pack, C657F1

1шт.

225321C1

WEDGE

CONNECTOR Wedge, Splice Pack, C657F1

1шт.

87695652

PLUG,12 - 16 Ga, White

Splice Pack, C657F1

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, C657F1

4шт.

381418A1

SOCKET

Terminal, Splice Pack, C657F1

4шт.

10

87270259

ELEC CONNECTOR

8 Way Splice Pack, C657M1

1шт.

11

87692855

CONTACT HOUSING,Male, 2 Cavities

Backup Light, C658F1

1шт.

225127C1

PLUG

Backup Light, C658F1

2шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Backup Light, C658F1

2шт.

12

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Backup Light Cap, C658M1

1шт.

225127C1

PLUG

Backup Light Cap, C658M1

2шт.

13

87696551

CONTACT HOUSING,Female, 3 Pole

RH Stop/Tail, C655F1

1шт.

87705586

WEDGE

RH Stop/Tail, C655F1

1шт.

225039C1

TERMINAL

Terminal, RH Stop/Tail, C655F1

3шт.

14

87696093

ELEC CONNECTOR,Female, 2 Cavities

RH Turn/Flash, C653F1

1шт.

222846A1

STOP LOCK

RH Turn/Flash, C653F1

1шт.

225039C1

TERMINAL

Terminal, RH Turn/Flash, C653F1

2шт.

15

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Turn, C651F1

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

RH Turn, C651F1

2шт.

16

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap For P651, C651M1

1шт.

225127C1

PLUG

Cap For P651, C651M1

2шт.
