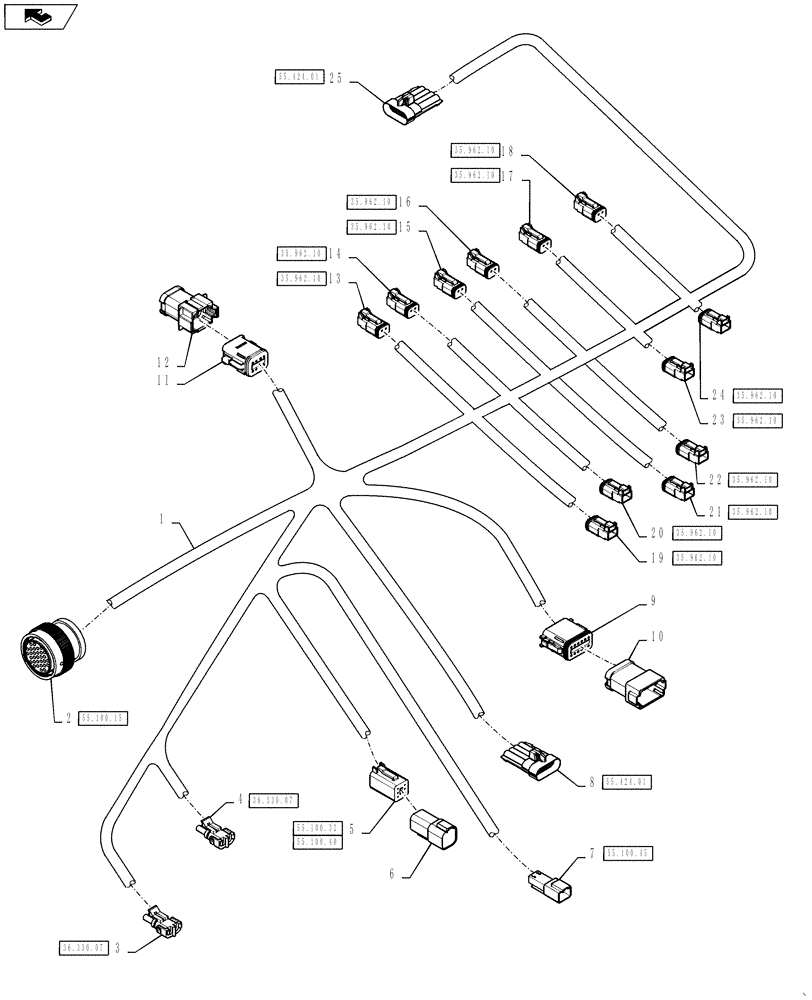

Запчасти Case IH 4430 (55.100.19) - HYDRAULIC CONTROL HARNESS, BOOM CENTER SECTION (55) - ELECTRICAL SYSTEMS

1

84281621

HARNESS

Boom Center Section, Hydraulic Control

1шт.

2

87696949

ELEC CONNECTOR

Frame Hydraulic Control Harness Interface, CM40M

1шт.

2

87695652

PLUG,12 - 16 Ga, White

Plug, Frame Hydraulic Control Harness Interface, CM40M

5шт.

2

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Terminal, Frame Hydraulic Control Harness Interface, CM40M

26шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Liquid Foam Solenoid, C414F

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

LH Liquid Foam Solenoid, C414F

2шт.

3

BN16174

DIODE,600V, 3A

LH Liquid Foam Solenoid, C414F

1шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Liquid Foam Solenoid, C421F

1шт.

4

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

RH Liquid Foam Solenoid, C421F

2шт.

4

BN16174

DIODE,600V, 3A

RH Liquid Foam Solenoid, C421F

1шт.

5

87694112

ELEC CONNECTOR,Female, 6 Pole

Aim Command Harness Interface, C422F

1шт.

5

87694150

LOCKING TAB,Wedge Lock

Aim Command Harness Interface, C422F

1шт.

5

84068583

PLUG,12 - 16 Ga, White

Aim Command Harness Interface, C422F

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Aim Command Harness Interface, C422F

5шт.

6

84391167

CAP

Aim Command Harness Interface Cap, C422M

1шт.

7

87695584

CONTACT HOUSING,Male, 2 Cavities

Foam Marker Pump Harness Interface, C416M

1шт.

7

87577731

CONTACT HOUSING,2 Pole

Wedge, Foam Marker Pump Harness Interface, C416M

1шт.

7

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Foam Marker Pump Harness Interface, C416M

2шт.

8

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR LH Boom Position Switch, C425M

1шт.

8

87689643

CLIP,4.8mm ID

Wedge, LH Boom Position Switch, C425M

1шт.

8

87689636

PLUG,Red, Taxi Seal Connector Cavity

LH Boom Position Switch, C425M

1шт.

8

84182584

TERMINAL

LH Boom Position Switch, C425M

3шт.

9

87695592

CONTACT HOUSING,Female, 12 Pole

12 Way Ground Splice, C455F

1шт.

9

87695651

LOCKING TAB,Wedge Lock

12 Way Ground Splice, C455F

1шт.

9

87695652

PLUG,12 - 16 Ga, White

Plug, 12 Way Ground Splice, C455F

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

12 Way Ground Splice, C455F

10шт.

9

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Terminal, 12 Way Ground Splice, C455F

1шт.

10

87269436

SOCKET/RECEPTACLE

Splice Pack 12 Way, C455M

1шт.

11

87708152

ELEC CONNECTOR

8 Way Ground Splice, C456F

1шт.

11

84806312

LOCKING TAB,Wedge Lock

Wedge, 8 Way Ground Splice, C456F

1шт.

11

87695652

PLUG,12 - 16 Ga, White

Plug, 8 Way Ground Splice, C456F

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

8 Way Ground Splice, C456F

6шт.

11

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Terminal, 8 Way Ground Splice, C456F

1шт.

12

87270259

ELEC CONNECTOR

Splice Pack 8 Way, C456M

1шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Fold In, C401F

1шт.

13

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Fold In, C401F

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Boom Fold In, C401F

2шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Up C407F

1шт.

14

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Level Up C407F

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Boom Level Up C407F

2шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Fold In, C410F

1шт.

15

87695649

ELEC CONNECTOR,Locking, Green

LH Tip Fold In, C410F

1шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Tip Fold In, C410F

2шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Fold In, C408F

1шт.

16

87695649

ELEC CONNECTOR,Locking, Green

RH Tip Fold In, C408F

1шт.

16

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Tip Fold In, C408F

2шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Up C405F

1шт.

17

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Level Up C405F

1шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Boom Level Up C405F

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Fold In, C403F

1шт.

18

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Fold In, C403F

1шт.

18

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Boom Fold In, C403F

2шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Out, C400F

1шт.

19

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Out, C400F

1шт.

19

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Boom Out, C400F

2шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Down, C406F

1шт.

20

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Level Down, C406F

1шт.

20

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Boom Level Down, C406F

2шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Fold Out, C411F

1шт.

21

87695649

ELEC CONNECTOR,Locking, Green

LH Tip Fold Out, C411F

1шт.

21

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Tip Fold Out, C411F

2шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Fold Out, C409F

1шт.

22

87695649

ELEC CONNECTOR,Locking, Green

RH Tip Fold Out, C409F

1шт.

22

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Tip Fold Out, C409F

2шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Down, C404F

1шт.

23

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Level Down, C404F

1шт.

23

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Boom Level Down, C404F

2шт.

24

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Fold Out, C402F

1шт.

24

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Fold Out, C402F

1шт.

24

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Boom Fold Out, C402F

2шт.

25

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR RH Boom Position Switch, C424M

1шт.

25

87689643

CLIP,4.8mm ID

Wedge, RH Boom Position Switch, C424M

1шт.

25

87689636

PLUG,Red, Taxi Seal Connector Cavity

RH Boom Position Switch, C424M

1шт.

25

84182584

TERMINAL

RH Boom Position Switch, C424M

3шт.
