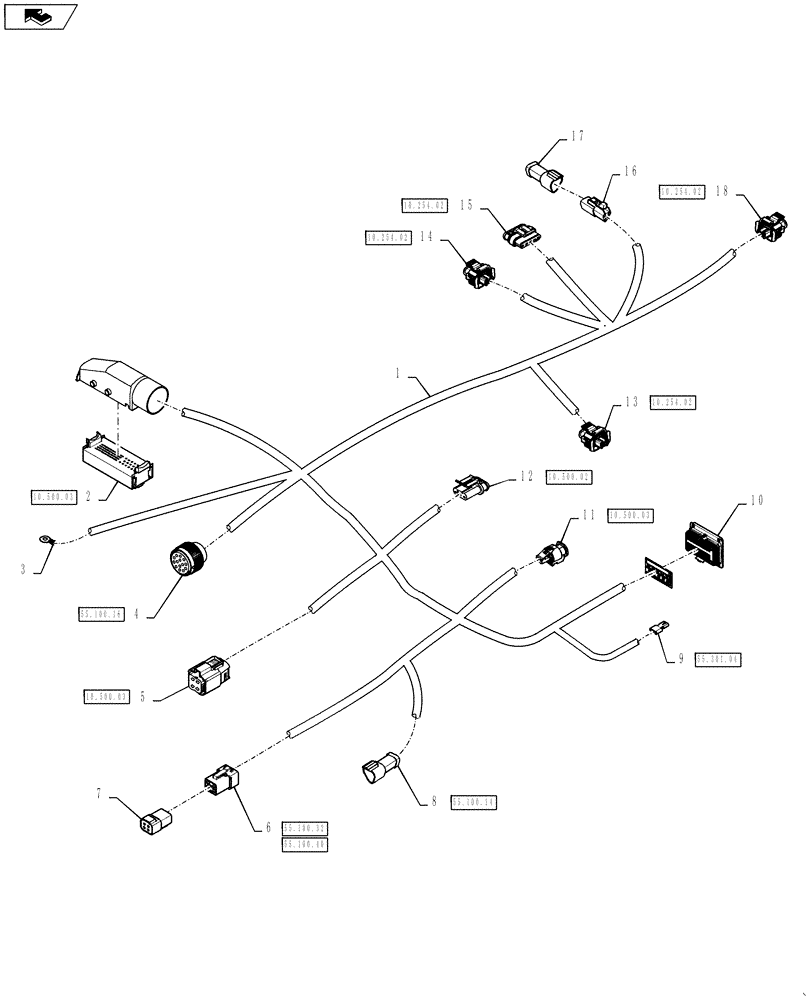

Запчасти Case IH 4430 (55.100.17) - ENGINE DENOX HARNESS (55) - ELECTRICAL SYSTEMS

1

84488933

WIRE HARNESS

Engine Denox Harness

1шт.

2

87713291

WIRE CONNECTOR

Denox Control Unit, C823F

1шт.

87713301

CAP

Denox Control Unit, C823F

1шт.

87713302

SCREW,Phillips Drive, Round HD, M3 x 12mm

Denox Control Unit, C823F

1шт.

87679949

TERMINAL CONNECTOR

Terminal, Denox Control Unit, C823F

20шт.

82035902

PLUG

Denox Control Unit, C823F

12шт.

3

84140737

TERMINAL CONNECTOR

Chassis Ground, G1-DX

1шт.

4

84178654

ELEC CONNECTOR

Denox Interface, C802M

1шт.

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Terminal, Denox Interface, C802M

4шт.

82019149

TERMINAL

Terminal, Denox Interface, C802M

4шт.

84068583

PLUG,12 - 16 Ga, White

Denox Interface, C802M

6шт.

5

84262038

WIRE CONNECTOR

Converter +24V, C824F

1шт.

84257517

TERMINAL CONNECTOR,3.00 - 5.00mm

Terminal, Converter +24V, C824F

4шт.

6

87448363

WIRE CONNECTOR,Female

Aim Command Power, C940F

1шт.

87707796

ELEC CONNECTOR

Aim Command Power, C940F

1шт.

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

Terminal, Aim Command Power, C940F

3шт.

84068583

PLUG,12 - 16 Ga, White

Aim Command Power, C940F

1шт.

7

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Cap, C940M

1шт.

84068583

PLUG,12 - 16 Ga, White

Cap, C940M

4шт.

8

87695723

ELEC CONNECTOR,Male , 3 Pole

Denox To Product Interface, C505M

1шт.

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Denox To Product Interface, C505M

3шт.

9

84260359

TERMINAL CONNECTOR,Tin, 10.00 - 16.00mm

Power Distribution Box, PD4

1шт.

10

87312843

FUSE BOX

External Fuse Relay Box, C810

1шт.

87655334

RELAY,12V, 35A, Micro

External Fuse Relay Box, C810, K1, K3, K4, K5

4шт.

87312626

RELAY,24V

External Fuse Relay Box, C810, K2

1шт.

121414A1

FUSE,20A, Mini, Yellow

External Fuse Relay Box, C810, F2, F4, F5

3шт.

121410A1

FUSE,5A, Mini, Tan

External Fuse Relay Box, C810, F3

1шт.

121416A1

FUSE,30A, Mini, Green

External Fuse Relay Box, C810, F1, F6, F7, F8

4шт.

87686742

PLUG

External Fuse Relay Box, C810

11шт.

84392736

TERMINAL CONNECTOR

Terminal, External Fuse Relay Box, C810

5шт.

87693249

ELEC. TERMINAL PIN

Terminal, External Fuse Relay Box, C810

14шт.

441659A1

ELEC CONNECTOR

Terminal, External Fuse Relay Box, C810

18шт.

11

84192117

ELEC CONNECTOR

Urea Heating Valve, C829F

1шт.

84190318

TERMINAL CONNECTOR

Terminal, Urea Heating Valve, C829F

2шт.

12

87691304

WIRE CONNECTOR,Female

AdBlue Module, C803F

1шт.

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Terminal, AdBlue Module, C803F

3шт.

13

87709793

WIRE CONNECTOR,Female, 2 Cavities

Upstream Exhaust Temp Sensor, C827F

1шт.

12309290

CABLE TERMINAL

Terminal, Upstream Exhaust Temp Sensor, C827F

2шт.

14

87709793

WIRE CONNECTOR,Female, 2 Cavities

Downstream Exhaust Temp Sensor, C827F

1шт.

12309290

CABLE TERMINAL

Terminal, Downstream Exhaust Temp Sensor, C827F

2шт.

15

84190317

WIRE CONNECTOR,Female, 5 Cavities

Dosing Module, C825F

1шт.

84190318

TERMINAL CONNECTOR

Terminal, Dosing Module, C825F

4шт.

87709655

BLANK-OFF PLUG

Dosing Module, C825F

1шт.

16

87695580

ELEC CONNECTOR,Female, 3 Pole

Denox Terminator, C826F

1шт.

84058194

PLUG

Wedge, Denox Terminator, C826F

1шт.

84068583

PLUG,12 - 16 Ga, White

Denox Terminator, C826F

1шт.

225365C1

SOCKET

Terminal, Denox Terminator, C826F

2шт.

17

84058092

CONTACT HOUSING,120 Ohm Resistor

120A Terminator, C826M

1шт.

18

87709793

WIRE CONNECTOR,Female, 2 Cavities

Urea Dosing Valve, C804F

1шт.

12309290

CABLE TERMINAL

Terminal, Urea Dosing Valve, C804F

2шт.
