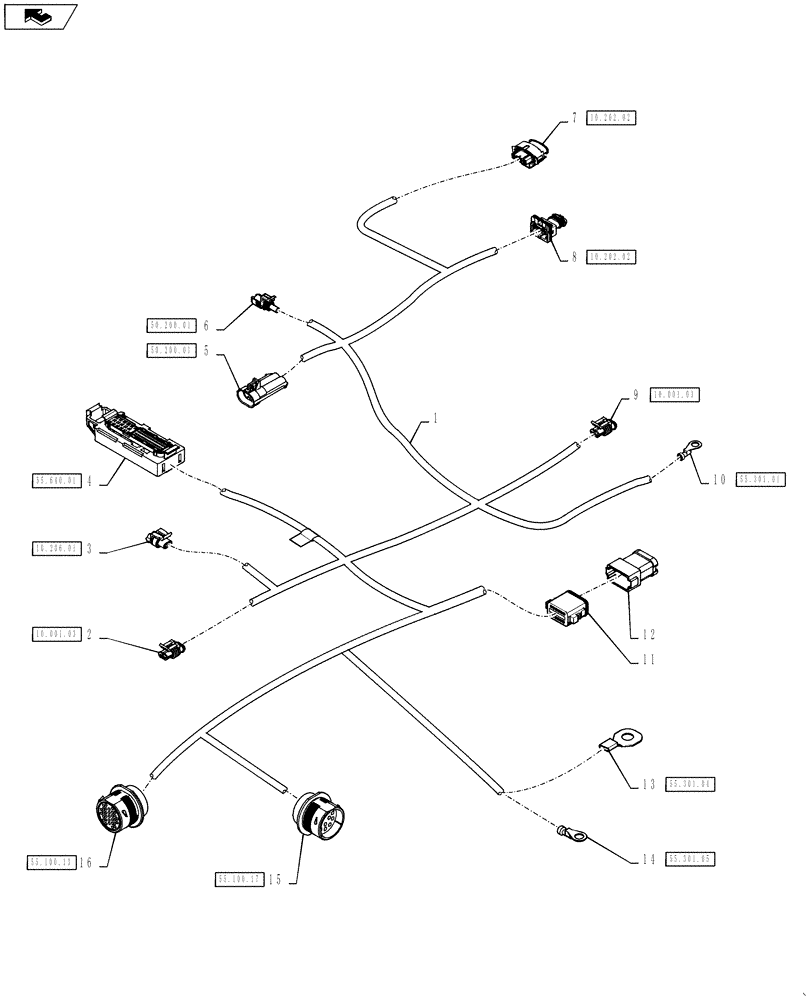

Запчасти Case IH 4430 (55.100.16) - ENGINE HARNESS, MAIN (55) - ELECTRICAL SYSTEMS

1

84396993

HARNESS

Main Engine Harness, Complete

1шт.

2

82012083

WIRE CONNECTOR,Female

Intermediate Start Relay, C806F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Intermediate Start Relay, C806F

1шт.

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Intermediate Start Relay, C806F

1шт.

87406998

SEAL

Seal, Intermediate Start Relay, C806F

1шт.

3

87693821

ELEC CONNECTOR,Female, 2 Cavities

Fuel Restriction, C667F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Fuel Restriction, C667F

2шт.

87689629

SEAL

Fuel Restriction, C667F

1шт.

4

84160698

ELEC CONNECTOR

ECM, C816M

1шт.

84183733

ELEC CONNECTOR

Cover, ECM, C816M

1шт.

84130602

TERMINAL CONNECTOR

ECM, C816M

16шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

ECM, C816M

2шт.

84172149

TERMINAL CONNECTOR

Gold, ECM, C816M

4шт.

87636264

ELEC CONNECTOR

Dummy Plug, ECM, C816M

7шт.

5

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

A/C Safety Switch, C813M

1шт.

225276C1

TERMINAL CONNECTOR

A/C Safety Switch, C813M

2шт.

292550A1

SEAL

Seal, A/C Safety Switch, C813M

2шт.

87688862

LOCKING TAB

A/C Safety Switch, C813M

1шт.

6

87693744

WIRE CONNECTOR

A/C Clutch, C814F

1шт.

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

A/C Clutch, C814F

1шт.

7

87709809

ELEC CONNECTOR

Inlet Sensor, C830F

1шт.

12309290

CABLE TERMINAL

Terminal, Tin, Inlet Sensor, C830F

4шт.

87705976

SEAL

Seal, Inlet Sensor, C830F

4шт.

8

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Restriction, C811F

1шт.

12309290

CABLE TERMINAL

Terminal, Air Restriction, C811F

2шт.

87691478

SEAL

Air Restriction, C811F

2шт.

9

82012083

WIRE CONNECTOR,Female

Grid Heater, C817F

1шт.

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Grid Heater, C817F

2шт.

87406998

SEAL

Seal, Grid Heater, C817F

2шт.

10

84127304

TERMINAL

Ring Terminal, M5, Alternator Exciter, C835F

1шт.

87710106

TERMINAL CONNECTOR

Boot, Alternator Exciter, C835F

1шт.

11

87696075

ELEC CONNECTOR

Splice Pack, Female, C805F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, Female, C805F

6шт.

87695651

LOCKING TAB,Wedge Lock

Splice Pack, Female, C805F

1шт.

12

87381540

ELEC CONNECTOR

Splice Pack, Male, C805F

1шт.

13

84260359

TERMINAL CONNECTOR,Tin, 10.00 - 16.00mm

Ring Terminal, PD3

1шт.

14

1964718C1

TERMINAL CONNECTOR

Ring Terminal, M10-6, CG4

1шт.

15

84178657

ELEC CONNECTOR

Denox Interface, C802F

1шт.

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Denox Interface, C802F

3шт.

225365C1

SOCKET

Gold, Denox Interface, C802F

4шт.

87716303

NUT,1.500" x 18 UNEF

Denox Interface, C802F

1шт.

16

87696944

ELEC CONNECTOR,Female, 31 Pole

Engine Interface, C801F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Engine Interface, C801F

17шт.

87271930

NUT

Engine Interface, C801F

1шт.
