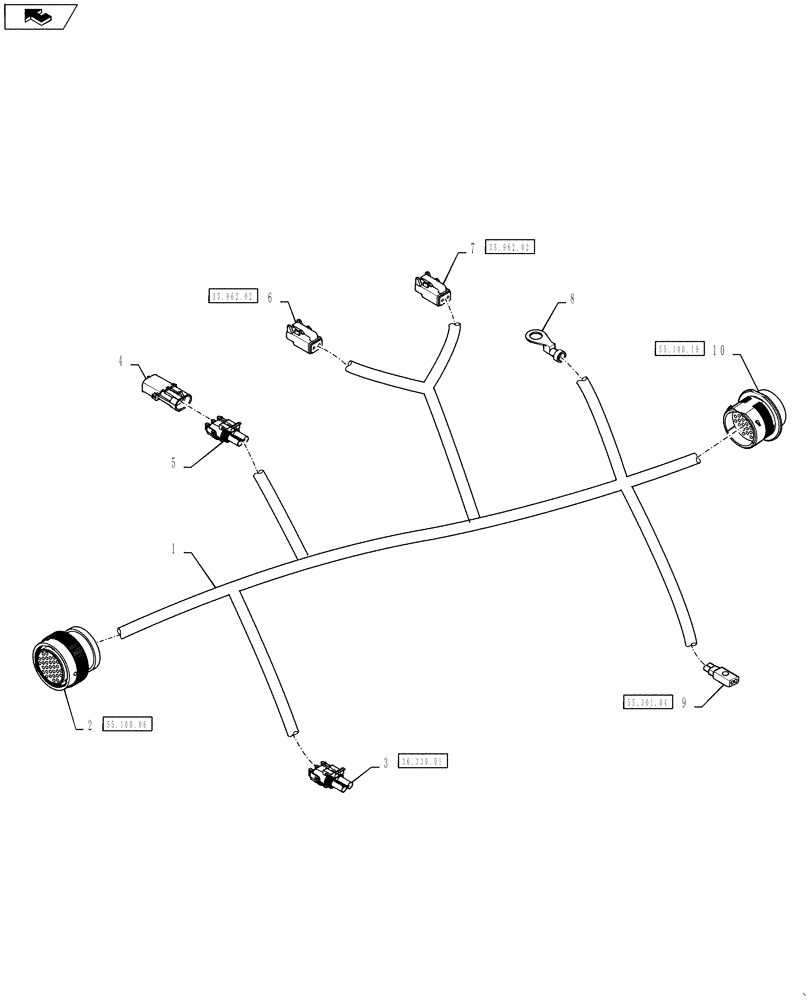

Запчасти Case IH 4430 (55.100.15) - HYDRAULIC CONTROL HARNESS, FRAME (55) - ELECTRICAL SYSTEMS

1

84281620

HARNESS

Hydraulic Control Harness, Frame

1шт.

2

380840A1

TERMINAL CONNECTOR,Female, 31 Cavities

Hydraulic Bulkhead Interface, CM4F

1шт.

87695652

PLUG,12 - 16 Ga, White

Plug, Hydraulic Bulkhead Interface, CM4F

8шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Hydraulic Bulkhead Interface, CM4F

24шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Motor, C417F

1шт.

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Foam Motor, C417F

2шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Accessory Power, C413M

1шт.

87692882

ELEC. TERMINAL PIN

Terminal, Accessory Power, C413M

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For C413F1, C413F

1шт.

87686742

PLUG

Cap For C413F1, C413F

2шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Up, C412F

1шт.

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Boom Up, C412F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Boom Up, C412F

2шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Down, C415F

1шт.

87695649

ELEC CONNECTOR,Locking, Green

Wedge, Boom Down, C415F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Boom Down, C415F

2шт.

8

84140737

TERMINAL CONNECTOR

Ground, G1 - HF

1шт.

9

84382955

TERMINAL CONNECTOR,Tin, 2.50 - 4.00mm

Battery Power, PD5

1шт.

10

87696944

ELEC CONNECTOR,Female, 31 Pole

Center Section Harness Interface, CM40F

1шт.

87695652

PLUG,12 - 16 Ga, White

Plug, Center Section Harness Interface, CM40F

7шт.

87271930

NUT

Center Section Harness Interface, CM40F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Center Section Harness Interface, CM40F

28шт.
